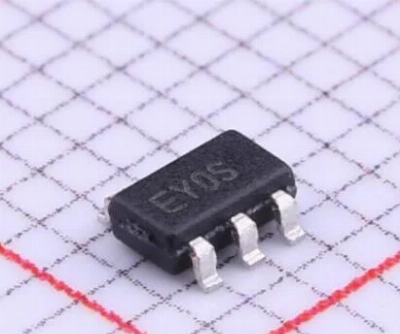

MCP6021T-E/OT MCP6021 Series 5.5V 10MHz Operational Amplifier IC

DescriptionMCP6021T-E/OT: OP Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/RMfr. Part#: MCP6021T-E/OTMfr.: MICROCHIPDatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: ONE YEAR   Mounting Style:SMD/SMT Package / Case:SOT-23-5 Number of Channels:1 Channel Supply Voltage - Max:5.5 V GBP - Gain Bandwidth Product:10 MHz Output Current per Channel:22 mA SR - Slew Rate:7 V/us Vos - Input Offset Voltage:250 uV Supply Voltage - Min:2.5 V Minimum Operating Temperature:- 40 C Maximum Operating Temperature:+ 125 C Ib - Input Bias Current:5 nA Operating Supply Current:1 mA Shutdown:No Shutdown CMRR - Common Mode Rejection Ratio:70 dB en - Input Voltage Noise Density:8.7 nV/sqrt Hz Series:MCP6021 Qualification:AEC-Q100 Packaging:Reel Packaging:Cut Tape Packaging:Reel Amplifier Type:General Purpose Amplifier Brand:Microchip Technology Height:1.3 mm In - Input Noise Current Density:0.003 pA/sqrt Hz Length:3.1 mm Moisture Sensitive:Yes Operating Supply Voltage:2.5 V to 5.5 V Product:Operational Amplifiers Product Type:Op Amps - Operational Amplifiers PSRR - Power Supply Rejection Ratio:74 dB Factory Pack Quantity:3000 Subcategory:Amplifier ICs Supply Type:Single Technology:CMOS Voltage Gain dB:110 dB Width:1.8 mm Unit Weight:0.000222 oz  The MCP6021 is rail-torail input and output op amps with high performance. Key specifications include: wide bandwidth (10 MHz), low noise (8.7 nV/√Hz), low input offset voltage and low distortion (0.00053% THD+N).The single MCP6021 is available in SOT-23-5. The single MCP6021 is available in 8-lead PDIP, SOIC and TSSOP. The Extended Temperature single MCP6021 is available in 8-lead MSOP.The MCP6021family is available in Industrial and Extended temperature ranges. It has a power supply range of 2.5V to 5.5V.Key FeaturesRail-to-Rail Input/outputWide Bandwidth: 10 MHz (typical)Low Noise: 8.7 nV/√Hz, at 10 kHz (typical)Low Offset Voltage: Industrial Temperature: ±500 µV (maximum)Extended Temperature: ±250 µV (maximum)Mid-Supply VREF: MCP6021 and MCP6023Low Supply Current: 1 mA (typical)Total Harmonic Distortion: 0.00053% (typical, G = 1 V/V)Unity Gain StablePower Supply Range: 2.5V to 5.5VTemperature Range: Industrial: -40°C to +85°CExtended: -40°C to +125°CTape and Reel Packaging   Why choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
