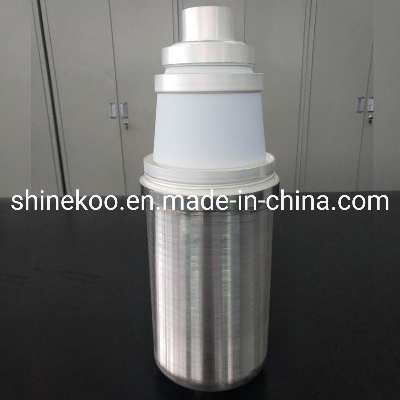

Ceramic Vacuum Tube Ctk15-2, Ctk25-4, Ctk35-2

CTK35-2, it is a high-power triode designed specifically for industrial applications and CO2 laser cutting machines. The tube uses a coaxial design and metal-ceramic technology. This triode may be operated in CW or pulse modes. For operation in pulse. It is rugged mesh thoriated-tungsten cathode, and water-cooling Anode, output (Max.) 110kW, working frequency (Max.) 100MHz.Electrical CharacteristicsFilament Voltage9VFilament Current 360ACapacitancesGrid -anode50pFGrid-Cathode145pFAmplification factor140Transconductance60 mA/VOperating positionvertical, anode up or downWeight10kgCoolingAnode cooling waterTemperature at outlet (industrial water)60 °C maxCooling water inlet pressure5 bar maxTemperature at any point on tube envelope220 °C maxAir flow on filament head3 m3/min         Limit Working Conditions:Frequency 100 MHzAnode voltage11 kVAnode dissipation70 kWGrid dissipation1800 WOutput power110 kWTypical Operation:Frequency75 MHzFilament voltage9VFilament current360 AAnode DC voltage11 kVAnode current6~10 AGrid current3.5 AAnode output power45~70 kWDimension(mm) Product PictureProduct Description CTK35-2 is a metal ceramic power triode tube for laser machine designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This tube may be operated in CW or pulse modes. For operation in pulse mode, the parameters depend on each equipment characteristics. We manufacture the following all models. FC-10FA, FC-10FT, FC-732F, FC-735F, FC-735FT, FC305F, FC311, FC312F, FC620F, FC620FT,FD911S, FD003Z, FD-5S. FC10FT, FC201F, FC307F, FC307FS, FC308C, FC310C, FC310F, FC502F, FC732F, FC734F, FC735F. FU-33, FU-833A, 833A, 833C, FU-74F/RY-74B, FU-100F, FU-728F, FU-113F, FU-113FG, FU-998F, FU-5S, FU-62S, FU-610F, FU-610FA, FU-610S, FU-724F, FU-724S, FU-727F, FU-824F, FU-824FA, FU-832F, FU-834F, FU-834FA, FU-836F, FU-924F,FU-924FA,FU-928F,FU-101F,FU-101M,FU-101Z,FU-101C,FU-832C,FU-832FA, FU-832F,FU-832M, FU-917F,FU-917M, FU-307S, FU-74F, FU-250F, FU-252F, FU-946F, FU-947F FU611F, FU612F, FU613F, FU001F, FU104C, FU104Z, FU115F, FU116F, FU252F, FU615F, FU616C, FU617F, FU618F, FU720F, FU820C,FU820F, FU002F, FU617FT, FU-84F, FU-74F, FU-1608C, FU-1608F. GU84B, GU74B, GU78B. FM70FT,ML8533, ML8536,YU191B, YU191C, YU-148, YU-108,, YU-148, YU-191B,YL1050, YL1057, YL1631, YL1420,YD1202, YD1212. BW1184J2F, BW1185J2F, BW1184J, BW1185J, BW1184J2, BW1185J2, BW1608J2F, BW1608J.CQK25-2,CQK50-2. 3CX4500H3,3CX6000A7,3CX2500H3,3CX2500A3,3CX2500F3,3CX3000A7,3CX3000F7,3CX1500D3,3CX10000D3,3CX10000A3,3CX10000A7,3CX10000H3,3CX15000A3,3CX15000A7,3CX15000H3,3CX20000H3,3CX20000A7,3CX800A7,3CPX800A7,3CX1500A7,3CPX1500A7,3CX5000A7,3CPX5000A7,YU-158. YC-156,YC-156A,YC-179,YC-236,YC-257. 3CW5000F1,3CW5000F3,3CW40000H3,3CW45000H3,3CW20000A7,3CW20000H3, 3CW20000H7,3CW30000H3,3CW30000A7,3CW30000H7. 3CX2500A3,3CX2500F3,3CX2500H3,3CX3000A7, 3CX1500A7, 3CW20000A7. 4CX250B, 4CX250R, 4CX250FG, 4CX800A/RY-74B, 4CX800A, 4CX350A, 4CX350F, 4CX1000A,4CX1500B,4CX3500A,4CW1000A,4CX1500A,4CX3000A,4CX5000A,4CX5000R,4CX7500A,4CX10000D,4CX10000J,4CX15000A,4CX20000C,4CX20000D,4CX20000E,4CV100000C, 4CX250K, 4CX1500A, 4CX3000A, 4CX3500A, 4CX15000A, 4CV100000C, 4CX35000C, 4CX5000A,5CX1500A. CTK12-4, CTK12-1, CTK15-2, CTK25-4, CTK35-2, ITK12-1, ITK3-1, ITK5-1, ITK15-2, ITK30-2, ITK60-2, ITK70-2, ITK90-1,  ITL2-1, ITL3-1, ITL5-1, ITL9-1, ITL12-1, ITL15-2. TH5-6, TH6-3A, TH382, TH382, TH584, TH338, TH331, TH537, TH527, TH327, TH582, TH558, TH610, TH375, TH576, TH373, TH328, TH347. E3061, E3062, E3062E, E3069, E3130. RS3060CL, RS3060CJ, RS3021CJ, RS3026CJ, RS3040CJ, RS3041CJ, RS3041CJ, RS3040CJ, RS3060CJC, RS3021, RS2048CJ, RS2048CJC, RS1034SK, RS1034SL, RS1072C, RS2054SK. 8560AS, 928F,836F, 8741, 7T85, 7T69, 8F75R, 7F71RA, 8F68R. 6T51, 6T58RA, 7T62R, 7T62RE, 7T85RB, FU-947F, 7T69RB, 7T84RB, 7T69RB, 8T25RA, 8T85B, 8T85RB, 8T87RB, 8F76R, 8T69JB. SK300 Socket, SK1300 Socket, SK2210 Socket, SK184 Socket. CertificationsPackaging & Shipping FAQ/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
