Vacuum Triode Heating Machine Amplifier Power Tube (ITK60-2, ITK30-2)

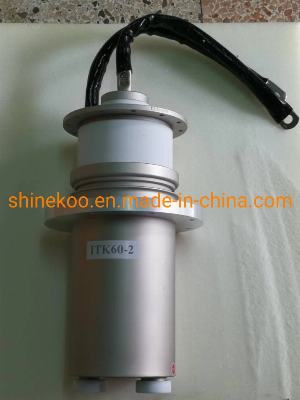

 ITK60-2, it is metal ceramic structure, net thorium tungsten cathode, high power triode. The stem cooled by air; the anode cooled by water. The max working frequency 60MHz, the max anode dissipation power 70kW, the anode max working voltage 14kV. The max output power 180kW. The tube is mainly used in industrial RF heating equipment.Electrical CharacteristicsFilament Voltage13VFilament Current 250AAmplification Factor23Transconductance115 mA/ VInterelectrode CapacitancesGrid-Cathode130pFGrid-Anode60pFCathode-Anode4pFWeight10.6kgMax Height386mmMax Diameter¢201mmMax temperature at any point tube envelope220ºCWater outlet temperature
