Ultra-High Frequency Metal Ceramic Heating Triode (ITK15-2, ITK12-1)

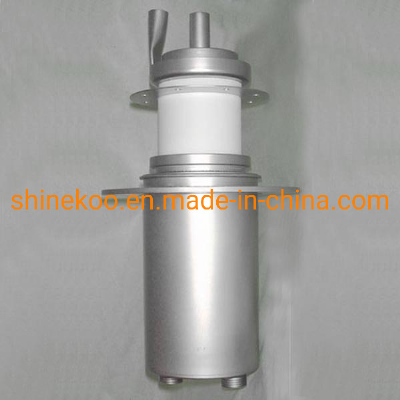

ITK15-2, It is coaxial metal ceramic structure triode, Thorium tungsten cathode. The stem cooled by forced air, the Anode cooled by water. The max working frequency 120MHz, the max Anode dissipation 20kW, the Anode max voltage 13kV.The max output power 63kW.The tube is mainly used as RF oscillator and amplifier.Electrical Characteristics Electrical Characteristics:                  Filament Voltage7.2VFilament Current 180AAmplification Factor25Transconductance60 mA/ VInterelectrode CapacitancesGrid-Filament (Cathode)60pFGrid-Anode25pFFilament-Anode1.4pFWeight3.8kgMax Height290mmMax Diameter¢155mmMax temperature220ºCOperating positionVertical or Anode up and downCoolingWater &AirAir flow on stem0.5m³/minWater flow on Anode20L/minWater outlet temperature60ºC Limit Working Conditions:Frequency120MHzAnode Voltage13kVGrid Voltage-1500VAnode Current8APeak Cathode Current, CW40AAnode Dissipation20kWGrid Dissipation600WAnode Output Power63kWTypical Operation:Frequency30MHzAnode Voltage12kVGrid Voltage-650VGrid Current0.33AAnode Current7AGrid Dissipation75WAnode Output Power45kWDimension(mm)Product DescriptionITK15-2 is a metal ceramic power triode tube for laser machine designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This tube may be operated in CW or pulse modes.For operation in pulse mode, the parameters depend on each equipment characteristics. We manufacture the following all models. FC-10FA, FC-10FT, FC-732F, FC-735F, FC-735FT, FC305F, FC311, FC312F, FC620F, FC620FT,FD911S, FD003Z, FD-5S. FC10FT, FC201F, FC307F, FC307FS, FC308C, FC310C, FC310F, FC502F, FC732F, FC734F, FC735F. FU-33, FU-833A, 833A, 833C, FU-74F/RY-74B, FU-100F, FU-728F, FU-113F, FU-113FG, FU-998F, FU-5S, FU-62S, FU-610F, FU-610FA, FU-610S, FU-724F, FU-724S, FU-727F, FU-824F, FU-824FA, FU-832F, FU-834F, FU-834FA, FU-836F, FU-924F,FU-924FA,FU-928F,FU-101F,FU-101M,FU-101Z,FU-101C,FU-832C,FU-832FA, FU-832F,FU-832M, FU-917F,FU-917M, FU-307S, FU-74F, FU-250F, FU-252F, FU-946F, FU-947F FU611F, FU612F, FU613F, FU001F, FU104C, FU104Z, FU115F, FU116F, FU252F, FU615F, FU616C, FU617F, FU618F, FU720F, FU820C,FU820F, FU002F, FU617FT, FU-84F, FU-74F, FU-1608C, FU-1608F. GU84B, GU74B, GU78B. FM70FT,ML8533, ML8536,YU191B, YU191C, YU-148, YU-108,, YU-148, YU-191B,YL1050, YL1057, YL1631, YL1420,YD1202, YD1212. BW1184J2F, BW1185J2F, BW1184J, BW1185J, BW1184J2, BW1185J2, BW1608J2F, BW1608J.CQK25-2,CQK50-2. 3CX4500H3,3CX6000A7,3CX2500H3,3CX2500A3,3CX2500F3,3CX3000A7,3CX3000F7,3CX1500D3,3CX10000D3,3CX10000A3,3CX10000A7,3CX10000H3,3CX15000A3,3CX15000A7,3CX15000H3,3CX20000H3,3CX20000A7,3CX800A7,3CPX800A7,3CX1500A7,3CPX1500A7,3CX5000A7,3CPX5000A7,YU-158. YC-156,YC-156A,YC-179,YC-236,YC-257. 3CW5000F1,3CW5000F3,3CW40000H3,3CW45000H3,3CW20000A7,3CW20000H3, 3CW20000H7,3CW30000H3,3CW30000A7,3CW30000H7. 3CX2500A3,3CX2500F3,3CX2500H3,3CX3000A7, 3CX1500A7, 3CW20000A7. 4CX250B, 4CX250R, 4CX250FG, 4CX800A/RY-74B, 4CX800A, 4CX350A, 4CX350F, 4CX1000A,4CX1500B,4CX3500A,4CW1000A,4CX1500A,4CX3000A,4CX5000A,4CX5000R,4CX7500A,4CX10000D,4CX10000J,4CX15000A,4CX20000C,4CX20000D,4CX20000E,4CV100000C, 4CX250K, 4CX1500A, 4CX3000A, 4CX3500A, 4CX15000A, 4CV100000C, 4CX35000C, 4CX5000A,5CX1500A. CTK12-4, CTK12-1, CTK15-2, CTK25-4, CTK35-2, ITK12-1, ITK3-1, ITK5-1, ITK15-2, ITK30-2, ITK60-2, ITK70-2, ITK90-1,  ITL2-1, ITL3-1, ITL5-1, ITL9-1, ITL12-1, ITL15-2. TH5-6, TH6-3A, TH382, TH382, TH584, TH338, TH331, TH537, TH527, TH327, TH582, TH558, TH610, TH375, TH576, TH373, TH328, TH347. E3061, E3062, E3062E, E3069, E3130. RS3060CL, RS3060CJ, RS3021CJ, RS3026CJ, RS3040CJ, RS3041CJ, RS3041CJ, RS3040CJ, RS3060CJC, RS3021, RS2048CJ, RS2048CJC, RS1034SK, RS1034SL, RS1072C, RS2054SK. 8560AS, 928F,836F, 8741, 7T85, 7T69, 8F75R, 7F71RA, 8F68R. 6T51, 6T58RA, 7T62R, 7T62RE, 7T85RB, FU-947F, 7T69RB, 7T84RB, 7T69RB, 8T25RA, 8T85B, 8T85RB, 8T87RB, 8F76R, 8T69JB. SK300 Socket, SK1300 Socket, SK2210 Socket, SK184 Socket. Certifications Packaging & ShippingFAQ  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
