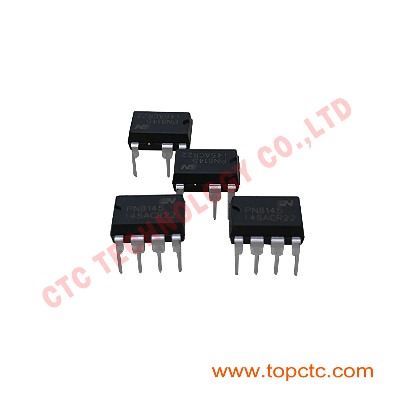

PN8145  Low Standby-Power Off-Line PWM Converters IC CTC

Datasheet  General DescriptionThe PN8145 consists of an integrated Pulse Width Modulator (PWM) controller and power MOSFET, specifically designed for a high performance off-line converter with minimal external components. PN8145 offers complete protection coverage with automatic self-recovery feature including Cycle-by-Cycle current limiting (adjustable OCP), and overload protection (OLP), over temperature protection(OTP), Over oltage Protection (OVP), CS Short-Circuit Protection and soft-start. Hi-mode, Eco-mode, Burst mode operation and device very low consumption helps to meet the standby energy saving regulations and achieve higher efficiency. Excellent EMI performance is achieved with frequency modulation. The device consists of the high voltage start-up circuit. The device provides an advanced platform well suited for the application of .The Six Levels of Energy Efficiency Standards, the Eur2.0, and the Energy Star.FeaturesInternal 650V avalanche-rugged power MOSFETHi-mode(60kHz PWM)Eco-mode(PFM)Burst-mode (25kHz Burst-Mode)Frequency modulation for low EMIBuilt-in Soft StartInternal HV Start-up CircuitInternal Slope and line input CompensationOpen frame output power >12W @230VACExcellent Protection Coverage:Over Temperature Protection(OTP).. Over Load Protection(OLP).. Adjustable Over Current Protection(OCP).. Over oltage Protection (OVP).. CS Short-Circuit Protection ApplicationsSwitch AC/DC Adaptor and Battery ChargerAuxiliary Power for White Goods, PC,AudioLCD /PDP TV PowerPackage/Order InformationTypical CircuitWhy choose us?* Specilaze in IC for around 14 years  * 100% Tested before sale * Cooperate with over 35 famous brands from domestic and international market * Competitive and reasonable price  * Abundant inventory and short lead time * 24hrs supports from our sales and R&D team   Warranty1 YearLead time3-7 DaysNotes1.The pictures are taken by camera. 2.You can contact us for a better price. 3.Feel free to contact us if you would like to see other models. Our company  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
