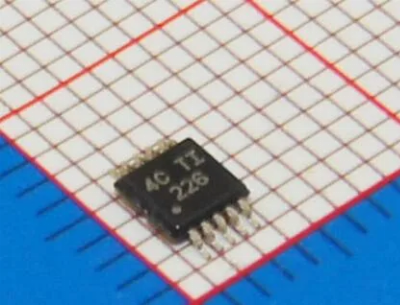

INA226AIDGSR Bi Directional Current and Power Monitor IC

DescriptionINA226AIDGSR: Bi Directional Current and Power Monitor 10-Pin VSSOP T/RPackage: MSOP-10Mfr. Part#: INA226AIDGSRMfr.: TIDatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: 180 days Product:Current and Power Monitors Sensing Method:High or Low Side Supply Voltage - Max:5.5 V Supply Voltage - Min:2.7 V Operating Supply Current:420 uA Accuracy:0.1 % Minimum Operating Temperature:- 40 C Maximum Operating Temperature:+ 125 C Mounting Style:SMD/SMT Package / Case:MSOP-10 Packaging:Reel Packaging:Cut Tape Packaging:MouseReel Bandwidth:7 kHz Brand:Texas Instruments Development Kit:INA226EVM Features:Alert Function, Bi-directional, Low-side Capable Input Voltage Range:0 V to 36 V Moisture Sensitive:Yes Operating Supply Voltage:2.7 V to 5.5 V Product Type:Current & Power Monitors & Regulators Series:INA226 Factory Pack Quantity:2500 Subcategory:PMIC - Power Management ICs Vos - Input Offset Voltage:10 uV Unit Weight:0.001168 ozThe INA226 is a current shunt and power monitor with an I2C interface. The INA226 monitors both a shunt voltage drop and bus supply voltage.Programmable calibration value, conversion times, and averaging, combined with an internal multiplier, enable direct readouts of current in amperes and power in watts.The INA226 senses current on buses that can vary from 0V to +36V, while the device obtains its power from a single +2.7V to +5.5V supply, drawing a typical of 330µAof supply current. The INA226 is specified over the operating temperature range of -40°C to +125°C. The I2C interface features 16 programmable addresses. Key FeaturesSENSES BUS VOLTAGES FROM 0V TO +36VHIGH- OR LOW-SIDE SENSINGREPORTS CURRENT, VOLTAGE, AND POWERHIGH ACCURACY: 0.1% Gain Error (Max)10µV Offset (Max)CONFIGURABLE AVERAGING OPTIONS16 PROGRAMMABLE ADDRESSESOPERATES FROM 2.7 to 5.5V POWER SUPPLYMSOP-10 PACKAGEAPPLICATIONS SERVERSTELECOM EQUIPMENTCOMPUTERSPOWER MANAGEMENTBATTERY CHARGERSPOWER SUPPLIESTEST EQUIPMENT Company Product Line  CertificatesProduct Packing detailsWhy choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team.     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
