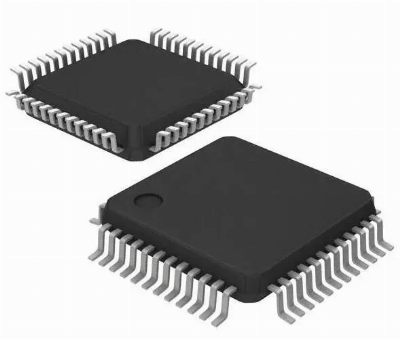

16bit Ultra-Low-Power Microcontroller IC MSP430F248TPMR

DescriptionMSP430F248TPMR: MCU 16-bit MSP430 RISC 48KB Flash 2.5V/3.3V 64-Pin LQFP T/RPackage: LQFP-64Mfr. Part#: MSP430F248TPMRMfr.: TIDatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: 180 days  The Texas Instruments MSP430 family of ultra-low power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.The MSP430F23x, MSP430F24x(1), and MSP430F2410 series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not MSP430F24x1), a comparator, four (two in MSP430F23x) universal serial communication interface (USCI) modules, and up to 48 I/O pins. The MSP430F24x1 devices are identical to the MSP430F24x devices, with the exception that the ADC12 module is not implemented. The MSP430F23x devices are identical to the MSP430F24x devices, with the exception that a reduced Timer_B, one USCI module, and less RAM are integrated.Typical applications include sensor systems, industrial control applications, and hand-held meters. Key FeaturesLow Supply-Voltage Range, 1.8 V to 3.6 VUltra-Low Power Consumption Active Mode: 270 µA at 1 MHz, 2.2 VStandby Mode (VLO): 0.3 µAOff Mode (RAM Retention): 0.1 µAUltra-Fast Wake-Up From Standby Mode in Less Than 1 µs16-Bit RISC Architecture, 62.5-ns Instruction Cycle TimeBasic Clock Module Configurations: Internal Frequencies up to 16 MHzInternal Very Low-Power LF Oscillator32-kHz CrystalInternal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1%ResonatorExternal Digital Clock SourceExternal Resistor12-Bit Analog-to-Digital (A/D) Converter With Internal Reference, Sample-and-Hold, and Autoscan Feature16-Bit Timer_A With Three Capture/Compare Registers16-Bit Timer_B With Seven Capture/Compare With Shadow RegistersFour Universal Serial Communication Interfaces (USCI) USCI_A0 and USCI_A1Enhanced UART Supporting Auto-Baudrate DetectionIrDA Encoder and DecoderSynchronous SPIUSCI_B0 and USCI_B1I2C™Synchronous SPIOn-Chip ComparatorSupply Voltage Supervisor/Monitor With Programmable Level DetectionBrownout DetectorBootstrap LoaderSerial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security FuseFamily Members Include: MSP430F233: 8KB+256B Flash Memory, 1KB RAMMSP430F235: 16KB+256B Flash Memory, 2KB RAMMSP430F247, MSP430F2471: 32KB+256B Flash Memory, 4KB RAMMSP430F248, MSP430F2481: 48KB+256B Flash Memory, 4KB RAMMSP430F249, MSP430F2491: 60KB+256B Flash Memory, 2KB RAMMSP430F2410: 56KB+256B Flash Memory, 4KB RAMAvailable in 64-Pin QFP and 64-Pin QFN Packages Company Product Line  CertificatesWhy choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
