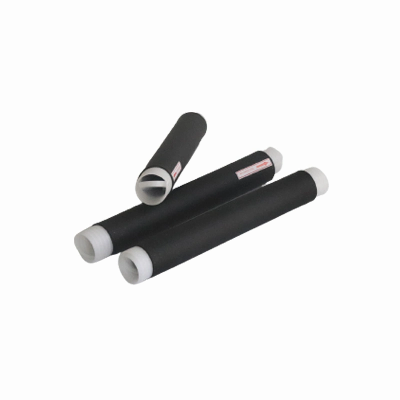

IP68 Electric Power Cable Insulation and Sealing EPDM Cold Shrinkable Tube

Product DescriptionRUBLS-EPDM a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for installation over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulation tube is made of EPDM rubber, which contains nochlorides or sulphurs. Various diameter sizes will cover a range of 1000 volt cables, copper and aluminum conductors.Features• Excellent weather resistance, ultraviolet aging resistance and higher embrittlement resistance than heat  shrink tubing• More resistant to slab and prick, abrasion, acid and alkali than silicone cold shrink tubing• Simultaneously expands and shrinks with workpieces without clearances, seals tight in harsh  environment• Stably sealing the workpieces in windy environment• Well suited for cable less than 1KV• Seals tight, retains its resiliency and pressure even after prolonged years of ageing and exposure• Simple, safe installation, requires no tools or special training. No torches or heat work required• Diameter shrinkage:±50%• Sealing class IP68        Detailed Photos    Product ParametersTechnical DataItemTypical DataTest methodHardness Shore45±5AGB/T 531.1Tensile Strength≥8.6MPaGB/T 528Elongation at break≥600%GB/T 528Tear Strength≥25MPaGB/T 529Dielectric Strength15kV/mmASTM D149    DimensionsSize(mm)Inner Diameter D(mm)Min Cable Outer Diameter  (mm)Max Cable Outer Diameter (mm)Recovered Length L(mm)VE25-82510.120.9203VE35-113513.930.1279VE42-164217.037.0406VE58-125824.049.3305VE77-127732.267.8305VE120-2412056.0110.0610 Other size is available to customize  Company ProfileSuzhou Volsun Electronics Technology Co.,Ltd. was founded in 2006. We keep focusing on the R&D, production and sales in insulation, sealing & protection solutions for over 17 years.Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification such as IATF16949, ISO9001 etc. And we have gained some advanced titles such as Jiangsu famous scientific and technical corporation, China new high-tech enterprise etc. have independent intellectual property rights, 88 patents and 97 product certifications.Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know enterprises in communication,Automobile, Power industry etc.Certifications    Packaging & ShippingTrade termsFOB, EXW, CIF, DDU, DDP, CFRPayment termsT/T, L/C, NegotiableMOQ1Supply capability100000 pieces per monthLead timeusually 2-3 working daysShipmentExpress, Air, SeaPortShanghai, Ningbo, ShenzhenSample availabilityYesSample timeusually 1-2 daysPackagingNormal: Plastic bag & Carton & PalletSpecial: Customized packing  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
