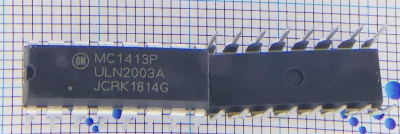

Trans Darlington NPN IC MC1413PG Bipolar Transistor 50V

DescriptionMC1413PG: Trans Darlington NPN 50V 0.5A 16-Pin PDIP Rail - Rail/TubePackage: DIP-16Mfr. Part#: MC1413PGMfr.: ONSEMIDatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: 180 days  Product Status Obsolete   Transistor Type 7 NPN Darlington   Current - Collector (Ic) (Max) 500mA   Voltage - Collector Emitter Breakdown (Max) 50V   Vce Saturation (Max) @ Ib, Ic 1.6V @ 500µA, 350mA   Current - Collector Cutoff (Max) -   DC Current Gain (hFE) (Min) @ Ic, Vce 1000 @ 350mA, 2V   Power - Max -   Frequency - Transition -   Operating Temperature 150°C (TJ)   Mounting Type Through Hole   Package / Case 16-DIP (0.300", 7.62mm)   Supplier Device Package 16-PDIP   Base Product Number MC1413P The seven NPN Darlington connected transistors in these arrays are well suited for driving lamps, relays, or printer hammers in a variety of industrial and consumer applications. Their high breakdown voltage and internal suppression diodes insure freedom from problems associated with inductive loads. Peak inrush currents to 500 mA permit them to drive incandescent lamps. The MC1413, B with a 2.7 kΩ series input resistor is well suited for systems utilizing a 5.0 V TTL or CMOS Logic.Company Product Line  CertificatesProduct Packing detailsWhy choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
