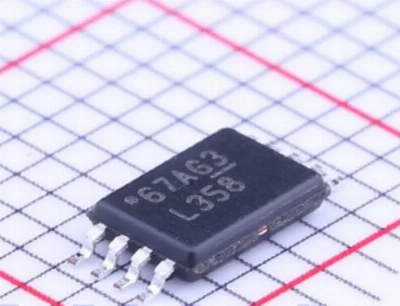

Lm358p Low Power Dual Operational Amplifier /Transistor /Integrated Circuit (IC)

DescriptionLM358P: IC OPAMP GP 700KHZ 8TSSOPPackage: TSSOP-8Mfr. Part#: LM358PMfr.: TIDatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: 180 days These devices consist of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages. Key FeaturesWide Supply Ranges Single Supply: 3 V to 32 V (26 V for LM2904)Dual Supplies: ±1.5 V to ±16 V (±13 V for LM2904)Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA TypicalWide Unity Gain Bandwidth: 0.7 MHzCommon-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near GroundLow Input Bias and Offset Parameters Input Offset Voltage: 3 mV Typical A Versions: 2 mV TypicalInput Offset Current: 2 nA TypicalInput Bias Current: 20 nA Typical A Versions: 15 nA TypicalDifferential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V (26 V for LM2904)Open-Loop Differential Voltage Gain: 100 dB TypicalInternal Frequency Compensation  Amplifier TypeGeneral PurposeNumber of Circuits2Output Type-Slew Rate0.3 V/µsGain Bandwidth Product700kHzCurrent - Input Bias20nAVoltage - Input Offset3mVCurrent - Supply1mACurrent - Output / Channel30mAVoltage - Supply, Single/Dual (±)3 V ~ 32 V, ±1.5 V ~ 16 VOperating Temperature0°C ~ 70°CMounting TypeSurface MountPackage / Case8-TSSOP (0.173", 4.40mm Width)Supplier Device Package8-TSSOP  Company Product Line  CertificatesProduct Packing detailsWhy choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
