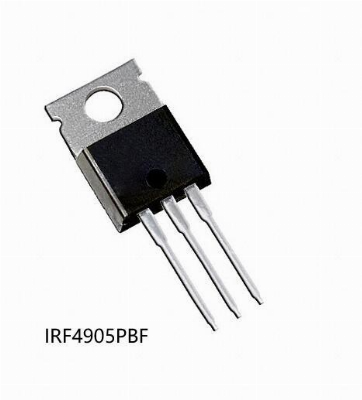

IRF4905PBF MOSFET Transistor P-Channel TO-220AB

DescriptionIRF4905PBF: MOSFET P-CH 55V 74A TO220AB Mfr. Part#: IRF4905PBFMfr.: INFINEONDatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: ONE YEAR  Package Tube   Product Status Active   FET Type P-Channel   Technology MOSFET (Metal Oxide)   Drain to Source Voltage (Vdss) 55 V   Current - Continuous Drain (Id) @ 25°C 74A (Tc)   Drive Voltage (Max Rds On, Min Rds On) 10V   Rds On (Max) @ Id, Vgs 20mOhm @ 38A, 10V   Vgs(th) (Max) @ Id 4V @ 250µA   Gate Charge (Qg) (Max) @ Vgs 180 nC @ 10 V   Vgs (Max) ±20V   Input Capacitance (Ciss) (Max) @ Vds 3400 pF @ 25 V   FET Feature -   Power Dissipation (Max) 200W (Tc)   Operating Temperature -55°C ~ 175°C (TJ)   Mounting Type Through Hole   Supplier Device Package TO-220AB   Package / Case TO-220-3   Base Product Number IRF4905 Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO220 contribute to its wide acceptance throughout the industry.  Why choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
