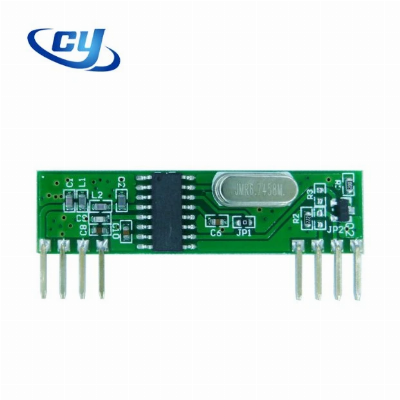

Cy01 + Cyt5 315 433MHz Wireless RF Receiver Transmitter Module Set

CYT5 transmitter module:Features:High output power: >8mW;Low operation voltage: VCC= 1.8 to 3.6 V;Frequency: 315MHz/433.92MHz;Frequency tolerance: ±50 KHz;The range can be up to 300m in open space when matching with CY11;Operating temperature: -20ºC~+70ºC ( It can custom to -40ºC ~ 85ºC upon requests);The Static power consumption is low. Emission current consumption: 8mA (315Mhz/433.92Mhz). There is no current consumption if there is no data launch;Frequency tolerance: ±30 KHz;Bit rate: 2.4KB/S;Circuit Shape: PLL(±50KHz);Dimension: 11.5*16*5.5mmApplicationRemote gate controls. BarriersRemote keyless entry (RKE)Car alarm systemsWireless security systemsAutomation systemsRemote control systemsRemote Curtain MotorPin DescriptionPlease note: CYT5 is come with standard three Vertical PINs as the picture showed in the right hand side (without the ANT pin). Please notify us if you would like 4 PINs or horizontal pin type.  PinNameFunction1GND Ground2DATAData connected to MCU3VDDPositive Power Supply4ANTAntenna InElectrical Characteristics:CYT5  VDD-GDN  1.8V-3.6V  TA-25°CCharacteristicsSymbolConditionValueUnitMin.Typ.Max.FrequencyFc 315433.92 MHzModulation Mode  ASK Output power 3.6V/50Ω 10 dBmData-rate   2.4 KbpsFrequency TolerateFc  ±50 KHzCurrentIRC  8 mAWorking VoltageVCC 1.83.33.6VWorking TemperatureTC -20 +70ºCCYT5-V3.0  VDD-GDN  1.8V-3.6V  TA-25°CCharacteristicsSymbolConditionValueUnitMin.Typ.Max.FrequencyFc 315433.92 MHzModulation Mode  ASK Output power 3.6V/50Ω 14 dBmData-rate   2.4 KbpsFrequency TolerateFc  ±50 KHzCurrentIRC  8 mAWorking VoltageVCC 1.83.33.6VWorking TemperatureTC -20 +70ºCMechanical Size: (Unit: MM)CY01 Receiver Module:Features:Frequency: 315M/433.92MHz (custom frequency is available)Low power consumption and low costHigher stability (no adjust components) & coherenceVery low RF re-radiation at the antenna;Higher sensitivity: -107dBm Operation temperature: -20ºC ~70ºC ( It can custom to -40ºC ~ 85ºC upon requests) Supply voltage: 3.0 ~ 5.5VLow current: 2.8mA(5V, 315MHz)Be compatible with most (ASK/OOK) transmittersApplicationSmart home systemRemote controlsRemote fan and light controlGarage door and gate openersAlarm and security systemPin DescriptionPin-out as showed in figure 1 abovePin NamePin DefinitionANTRF signal input pin, connect antenna outside(Note1)GNDConnect to negative power supplyGNDConnect to negative power supplyVDDConnect to positive power supplyVDDConnect to positive power supplyNCNo connectDATAData output pin, connect to MCU or decoder's input pinGNDConnect to negative power supplyNote 1: ANT pin is a 50 ohm antenna input. The length is about:  23cm for 315MHz17cm for 433.92MHzElectrical Characteristics:Condition: Ta=25ºC Vcc=5.0V Frequency=315MHzParameterSpecificationUnitConditionMin.Typ.Max.Frequency Range 315 MHzOther freq. availableReceiver Sensitivity -107 dBmBER=10E-2Data Rate0.582.44.8KbpsManchester codeSupply Voltage, VDD3.05.05.5VDCCurrent2.8  mADCOperating Temperature-20 70ºC Condition: Ta=25ºC Vcc=5.0V Frequency=433.92MHzParameterSpecificationUnitConditionMin.Typ.Max.Frequency Range 433.92 MHzOther freq. availableReceiver Sensitivity -107 dBmBER=10E-2Data Rate0.582.44.8KBaudManchester codeSupply Voltage, VDD3.05.05.5VDCCurrent4.0  mADCOperating Temperature-20 70ºC Mechanical Size: (Unit: MM)    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
