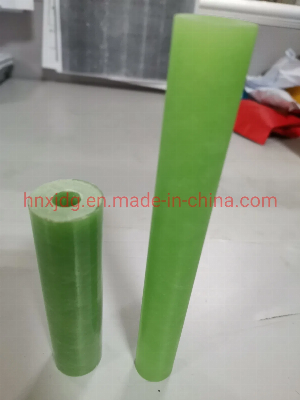

Epoxy Resin Filament Winding Glass Fiber Epoxy Composite Tube/Switch Tube

Standard:GB/T 5132.1-2009 IEC61212-1:2006PropertiesUnitIndex360/EPCF52Densityg/m³1.8-2.0Vertical Bending Strength (normal)MPa400Axial Compressive StrengthMPa≥150Parallel Breakdown Voltage (90 ºC of transformer oil)Kv≥40Vertical Electrical Strength (90 ºC of transformer oil) 1mmKv/mm≥11.6Surface Voltage Resistance after Wettingkv≥12Insulating Electrical Resistance after WettingΩ≥1.0109Dielectric Loss Factor (50Hz)-≤0.05Water Absorption%≤1Partial DischargePC≤5Temperature Index-180Note:The data in the above table only represents typical or average data, just for reference in practical application. It does not bear any responsibility for the use of the product or related legal liability.related products diaplay:Packaging & Shipping:Wrapped with packaging film and packed in pallet; horizontally placed in dry and clean room at room temperature;keep it away from moisture and fire. The storage period is 12 monthsWorkshop Display:Honor of the company:  FAQ1.    Are you a trading company or manufacturer?We are an original and real manufacurer(not mini family woks or personal brokers, pls clarify with it) with over 20 workshops for the kinds of insulation sheets/tubes/rods/parts.etc, which can meet the different requirements  for all over of world users. 2.    Can you customize according to my requirements?Yes, we can customize according to customers' requirements, like color, size, etc.3.    Where is your factory?Our factory is in Xuchang city, Henan province, China4.    Can you send me samples to test?Yes, we offer free samples to customers and they just need to pay the freight.5.    What's your main product?We supply all kinds of insulation materials used in electrical field and most of them used in transformers , motors, and electronic products .     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
