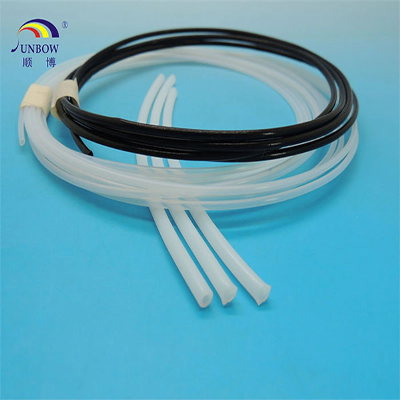

Medical Grade Clear Virgin PTFE Tube

Medical Grade Clear Virgin PTFE TubeProduct DescriptionModel Number: SB-PTFEWorking temperature: -80ºC ~ 260ºC  USAGEMedical Grade Clear Virgin PTFE Tube is manufactured by extrusion process with imported high quality PTFE resin. It has excellent high temperature resistance, high voltage resistance, abrasion resistance and self-lubricating properties. Medical Grade Clear Virgin PTFE Tube is widely used in mechanical industries, electronic and electric products, motor vehicle, aerospace, chemical industry, communications etc.  CHARACTERISTICS1. Excellent anti-corrosion (anti-acid/alkaline/chemical/oil);2. High voltage resistance (45KV/mm)  SPECIFICATIONItemStandardItemStandardRelative Density2.14~2.20Melting Point (ºC)327Tensile Strength (MPa)≥25Operating Temperature (0C)-80~260Stretch Yield Strength (MPa)≥11Oxygen Index (%)>90Elongation (%)≥300Water Absorption (%)300 Linear Expansion Coefficient (×105/ ºC)21~1000C10Shore Hardness (D)59~63breakdown strength (KV/mm)≥45Volume Resistance (Ω. cm)1*1016    Product Parameters DIMENSION  AWGInside Diameter  (mm)Outside Diameter (mm)(S)Outside Diameter (mm)(T)Outside Diameter (mm)(L)Standard Package(m/roll)300.30±0.100.80±0.100.70±0.100.64±0.10305280.38±0.100.88±0.100.78±0.100.72±0.10305260.46±0.100.96±0.100.86±0.100.80±0.10305240.56±0.101.16±0.101.06±0.100.90±0.10305230.66±0.101.26±0.101.16±0.101.00±0.10305220.71±0.101.31±0.101.21±0.101.05±0.10305210.81±0.101.41±0.101.31±0.101.15±0.10305200.86±0.101.66±0.101.46±0.101.20±0.10305190.96±0.201.76±0.201.56±0.201.30±0.20200181.07±0.201.87±0.201.67±0.201.41±0.20200171.19±0.201.99±0.201.79±0.201.53±0.20200161.34±0.202.14±0.201.94±0.201.68±0.20153151.50±0.202.30±0.202.10±0.201.84±0.20153141.68±0.202.48±0.202.28±0.202.08±0.20100131.93±0.202.73±0.202.53±0.202.33±0.20100122.16±0.252.96±0.252.76±0.252.56±0.25  100112.41±0.253.21±0.253.01±0.252.81±0.25150102.69±0.253.49±0.253.29±0.253.09±0.2515093.00±0.254.00±0.253.80±0.253.40±0.2515083.38±0.254.38±0.254.18±0.253.78±0.2510073.76±0.254.76±0.254.56±0.254.16±0.2510064.22±0.255.22±0.254.92±0.254.80±0.2510054.72±0.255.72±0.255.42±0.255.32±0.255045.28±0.306.28±0.306.02±0.305.88±0.25135.94±0.306.94±0.306.74±0.306.54±0.25126.68±0.307.68±0.307.48±0.307.28±0.25117.46±0.308.46±0.308.26±0.308.06±0.25108.38±0.309.38±0.309.18±0.308.98±0.251    COLOR: The standard color is clear.  Special thick wall thickness PTFE tube with wall thickness 0.5mm, 1mm, 1.5mm, 2mm  Inner Diameter(mm)Outside Diameter      (mm)              Wall Thickness   =0.5mmOutside Diameter (mm)                 Wall Thickness =1mmOutside Diameter (mm)Wall Thickness =1.5mmOutside Diameter (mm)Wall Thickness =2.0mm12±0.103±0.104±0.105±0.1023±0.104±0.105±0.106±0.1034±0.105±0.106±0.107±0.1045±0.106±0.107±0.108±0.1056±0.107±0.108±0.109±0.1067±0.108±0.109±0.1010±0.1078±0.109±0.1010±0.1011±0.1089±0.1010±0.1011±0.1012±0.10910±0.2011±0.2012±0.2013±0.201011±0.2012±0.2013±0.2014±0.201112±0.2013±0.2014±0.2015±0.201213±0.2014±0.2015±0.2016±0.201415±0.2016±0.2017±0.2018±0.20 Detailed PhotosDETAILS IMAGECOMPANY INFORMATIONShenzhen Sunbow insulation Materials MFG Co., Ltd,  established in 2003,mainly engaged in the research& development ,manufacture and sales of various insulation materials.Our products are silicone fiberglass sleeving, PVC tubing, silicone Tubing, Heat shrinkable Tube, PET expandable sleeve, corrugated pipe.We are a IATF16949 and ISO 9001 manufactuer of insulation materials. We supply to many big brands as as ABB, WHIRLPOOL, TOSHIBA, SIEMENS, TOYATA, VOLVO,SAMSUNG, HUAWEI and son on.WORKSHOPCertificationsWHY SUNBOW1. We are the china Top leading manufacture of PTFE tube.2. Good after sales service. we can promise one year quality gurantee.3. Price is competitive.4.We are IATF16949 and ISO 9001 manufactuer. 5. Our products are complied with UL, ROHS, REACH.6. We are in Shenzhen, which is a trade and manufacturing city. 7. Fast delivery time: 1 work day if in the stock, 7-15 work days if not.HOW TO CONTACTMedical Grade Clear Virgin PTFE Tube  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
