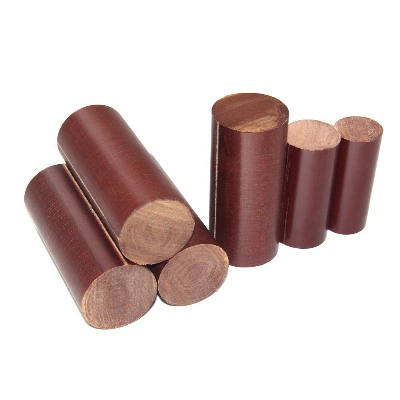

Electrical Insulation Bakelite Sheet Rod Tube

Electrical insulation bakelite sheet rod tube1. Introduction:Bakelite sheet is made of phenolic resin and cotton cloth.1)  Thickness:1-120mm2)  Width: 1020X2020mm, 1220*2440mm3)  Raw material:  21yarn 10yarn 32yarn2. Property Insulation material laminate bakelite sheet rod and tube1) Class b(130 degree)  bakelite sheet2) good electric performance and mechanical property under normal condition. Fit for insulation parts which needs certain mechanical performance and electric performance for machine, motors and electrical apparatus and they also be used inn the transformer oil.3)High mechanical performance, stable electrical properties, high tempreture3. Technical sheet  Electrical insulation bakelite sheet rod tube Properties 3025 laminated phenolic resin cotton cloth fabric bakelite insulation sheetUnitValueTest Value Flexural strength perpendicular to laminations                                                ≥MPa100102Bonding strength (≥10mm in thickness)                    ≥N--Impact strength on parallel laminations(Charpy)≥KJ/m28.88.89Insulation resistance after immersion in water (D-24/23)                                          ≥Ω1×1061×106Dielectric strength perpendicular to laminations (in 90±2ºC transformer oil, 1 mm in thickness)                                                               ≥ MV/m0.820.83Breakdown voltage parallel to laminations (in 90±2ºC transformer oil)     ≥            KV11.14Permittivity (48-60Hz)                ≤---Density g/cm3(1.6-1.65)1.63Water absorption (D-24/23, 1.6mm in thickness)      ≤mg220211.4Color -Brown           Brown 5. Packing2021 Hot Selling Electrical Insulation 3025 Phenolic Bakelite Cotton Laminate Sheet is put in one Plate approx 1ton, and then packing with film.r4 G10 epoxy fiberglass cloth resin laminate sheet insulation materialOther related electrical insulations6. Company informationERIC(TIANJIN)TECHNOLOGY GROUP CO.,LTD is a professional manufacturer of Various electrical insulation materials.Fr4 G10 epoxy fiberglass cloth resin laminate sheet insulation materialOur main products are as follows:1.Laminated sheet: epoxy fiberglass cloth sheet & tube, phenolic bakelite sheet & rod. 2.Fiberglass sleeving: PVC fiberglass sleeve, acrylic fiberglass sleeve, silicone rubber fiberglass sleeve and silicone fiberglass sleeve3.Electrical composite insulating paper: DMD NMN NHN etc.4. Mylar PET film, polyimide film5.Varnished products Eric always holds the principle of "Talent-oriented", puts science and technology in the first place, employs qualified professionals to develop new products and meets market demands.    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
