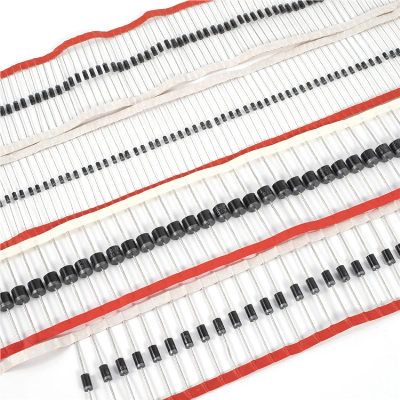

1n4007 M7 Diode SMD 1A 1000V Rectifier Diode In4007 M7

Product DescriptionMaximum Ratings and Electrical CharacteristicsRating at 25ºC ambient temperature unless otherwise specified.Single phase, half wave ,60Hz, resistive or inductive load. For capacitive load, derate current by 20%   Symbols1N40011N40021N40031N40041N40051N40061N4007UnitsMaximum repetitive peak reverse voltageVRMM501002004006008001000VoltsMaximum RMS voltageVRMS3570140280420560700VoltsMaximum DC blocking voltageVDC501002004006008001000VoltsMaximum Average Forward Rectified Current @TA=75 ºCI(AV)1.0AmpsPeak Forward Surge Current 8.3ms Single Half Sine-WaveSuper Imposed on Rated Load(JEDEC Method)IFSM30.0AmpsMaximum forward voltage at 1.0AVF1.1VoltsMaximum DC reverse current TJ=25ºC at rated DC blocking voltage TJ=100ºCIR5.050.0μATypical junction capacitance (Note 1)CJ15.0pFTypical thermal resistance (Note 2)RθJA26.0ºC/WOperating Temperature RangeTJ-55 to +125ºCStorage Temperature RangeTSTG-55 to +125ºCNotes:1.Measured at 1.0 MHz and applied reverse voltage of 4.0V DC2.Thermal resistance junction of ambient  Detailed Images  DO-41      Features1. Low cost2.Diffused junction3.Low forward voltage drop4.Low reverse leakage current5.High current capability6.The plastic material carries UL recognition 94V-0  Mechanical Data  1.Case: JEDEC DO-41 molded plastic2.Polarity: Color band denotes cathode3.Weight: 0.012 ounces , 0.34 grams4.Mounting position :Any  Related ProductsPackage detailsOur CompanyAnhui Zhongxin Semiconductor Co., Ltd. was established in 2010 and covers an area of 20000 square meters, which is located in Anhui Province, near Shanghai. Our company is focus on the development and production of diode, rectifier diode, mosfet, schottky diode, fast recovery diode, bridge rectifier, silicon wafer, etc. Our mission is to be the most valuable semiconductor supplier beside you. Welcome to contact us for future business relationships and mutual success.Our certificateOur ServiceProviding customers with the best price-performance diode series is the sacred mission of all employeesTo build the company into a world-class supplier of semiconductor discrete componentsPeople-oriented, customer first  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
