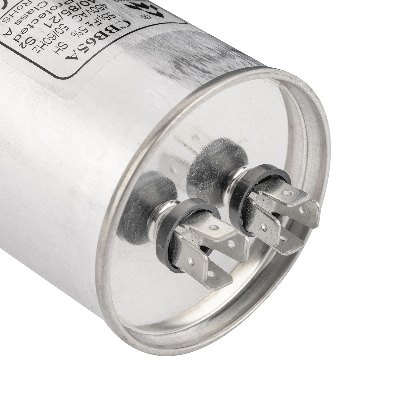

AC Metalized PP Film Cbb65 Sh Capacitor Manufacturer

CBB65A RUN CAPACITORS Main Feature: Low dissipation factor small inherent temperature rise, excellent Self-healing stability safety and high voltage withstand etc. Applications: Run starting in household electric appliances air conditioner, Refrigerator which demand 50/60Hz AC power supply Have Safe protection constrution. Specifications Climatic Category Rate voltage Testing voltage T-T Testing voltage T-C Capacitance Tolerance Dissipation Factor -25/+70/21 -40/+85/21 370/440VAC 1.75Un/5S (2Un/5S) 2000V. AC/5s ± 5% (± 10%) ≤ 0.002 (100Hz) Capacitance range: 2MFD-100MFD, 15+5MFD-80+7.5MFD Dimension(mm): D: Φ 40-Φ 60, H: 60-150 Reference standard: UL810, IEC252, EN60252, GB3667 Certification: UL Construction, UL 10, 000AFC, TUV Safety grade: P1 CBB65A-1 RUN CAPACITORS Main Feature: Low dissipation factor small inherent temperature rise, excellent Self-healing stability safety and high voltage withstand etc. Applications: Run starting in household electric appliances air conditioner, Refrigerator which demand 50/60Hz AC power supply Have Safe protection constrution. Specifications Climatic Category Rate voltage Testing voltage T-T Testing voltage T-C Capacitance Tolerance Dissipation Factor -25/+70/21 -40/+85/21 370/440VAC 1.75Un/5S (2Un/5S) 2000V. AC/5s ± 5% (± 10%) ≤ 0.002 (100Hz) Capacitance range: 2MFD-100MFD, 15+5MFD-80+7.5MFD Dimension(mm): W: 51.5(71), H: 60-150, L: 31.5(45) Reference standard: UL810, IEC252, EN60252, GB3667 Certification: UL Construction, UL 10, 000AFC, TUV Safety grade: P1 /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
