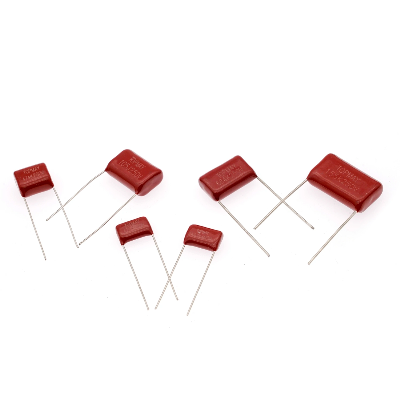

Tmcf15 Metallized Polypropylene Film Capacitor (CBB21)

TMCF15   Metallized Polypropylene Film Capacitor (CBB21)Specifications   Capacitor 1.Metalized Polypropylene Film Capacitor 2.Rated voltage: 100, 250, 400 and 630V 3.CBB21 Capacitor 4.Best price     Capacitor Metalized Polypropylene Film Capacitor CBB21General Specifications: Climatic category: 55, 85 and 21 Rated voltage: 100, 250, 400 and 630V Capacitance range: 0.01 to 3.3uF Capacitance tolerance: +-5% (J), +-10% (K) Voltage resistance: 1.5UR (1 to 5s) Dissipation factor (1kHz): CR =25,000MQ UR >100V CR =7,500MQ.UF UR >100V Features: Metallized polypropylene film, epoxy resin coating Low dissipation factor with high frequency Small inherent temperature rise High insulation resistance, good self-healing property Suitable for DC, pulse, high frequency and high current circuits S-shaping correction of color TV sets Product CertificationsCertificate Standard: UL Certificate Number: 104640001 Issue Date: 30-Jun-2004 Certification Agent: Underwriters Laboratories Inc Certificate Standard: SGS Certificate Number: GZSCR041248032/LP. Issue Date: 24-Dec-2004 Certification Agent: SGS -CSTC LTD Certificate Standard: RoHS Issue Date: 08-Sep-2006 Expiry Date: 07-Sep-2007 Certification Agent: China Quality Certification Centre .Packing: CartonTMCF15-102J400VP10B: 0.001uF 400V  J  P=10mm                      1,000$0.0230TMCF15-122J400VP10B:  0.0012uF 400V  J  P=10mm                      2,000$0.0230TMCF15-152J400VP10B: 0.0015uF 400V  J  P=10mm                                                 1,000$0.0230TMCF15-222J400VP10B: 0.0022uF 400V   J  P=10mm                                        6,000$0.0230TMCF15-332J400VP10B: 0.0033uF 400V   J  P=10mm                                           2,000$0.0230TMCF15-472J400VP10B: 0.0047uF 400V   J  P=10mm                                               6,000$0.0230TMCF15-682J400VP10B: 0.0068uF 400V   J  P=10mm                                                       1,000$0.0230TMCF15-103J400VP7.5B: 0.01uF 400V  J  P=7.5mm                                            10,000$0.0230TMCF15-153J400VP10B: 0.015uF 400V   J  P=10mm                                             1,000$0.0230TMCF15-223J400VP7.5B: 0.022uF 400V    J  P=7.5mm                                              20,000$0.0230TMCF15-333J400VP7.5B: 0.033uF 400V   J  P=7.5mm                                              2,000$0.0230   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
