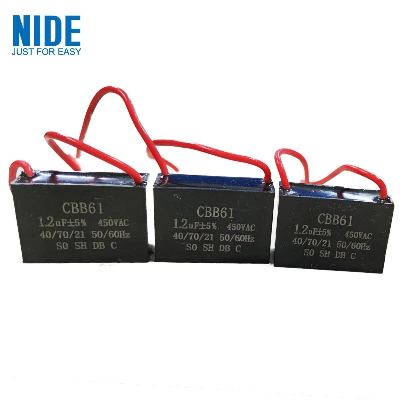

1.2UF Electric Fan Capacitor / Cbb61 Polypropylene Film Capacitor

CBB61 capacitor is a kind of AC motor running & starting capacitor. Its shape is generally rectangular. It is characterized by large capacity, low loss, strong moisture resistance, good reliability and excellent electrical performance. The ambient temperature suitable for use is -40ºC~+85ºC. Our company can develop, design and produce products that meet various special needs according to the different needs of customers. Capacitor Application :CBB61 capacitors are mainly used in electric fans, mahjong machines, bread machines, paper shredders, range hoods, etc.Capacitor Feature:1. Encapsulated in plastic shell, with good appearance consistency.2. Small loss at high frequency, suitable for larger current.3. High insulation resistance, good self-healing and long life. Capacitor Structure:1. The capacitor core is wound by metallized organic film.2. Plastic shell, flame retardant epoxy resin potting, single capacitor core or multi-capacitor core can be installed in one shell.3. The installation components include plastic ears and iron ears.4. The lead-out methods include plastic-encapsulated leads, tinned copper pins, quick-connect terminals, soldering lugs, etc. Capacitor ParameterProduct Name: AC Motor CapacitorModel: CBB61Material:Metal Plastic;Voltage: 250VAC,370VAC,440VAC,450VAC 50/60HzMax.TEMP: 70°CSize:38X27X16MMReference standards: GB/T 3667.1 ( IEC60252-1 )Climatic category: 40/ 70/21,40/85/21Class of operation  Class B (10000h) Class C (3000h)Class of safety protection  S0 /S3Capacitance range  1~35μ FCapacitance tolerance 5%,10%,15%Dissipation factor20x10^(-4) ( 100Hz, 20°C )Test voltage terminalto terminal UTT2Un for 2 secondsTest voltage terminal to caseUTC(2Un+ 1000)VAC or 2000VAC- 50Hz for 60 secondsRC≥3000s (100Hz, 20°C,1min) Capacitor Picture: /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
