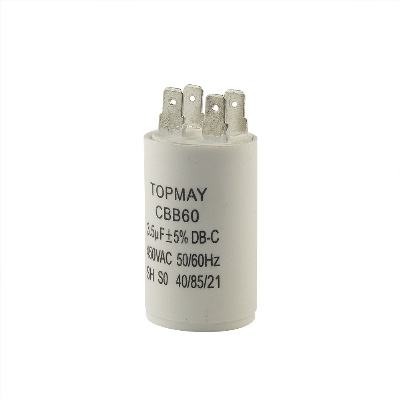

Cbb60 Cbb61 Cbb65 250V AC Motor Run Capacitor with Wire

 Detailed Product Description:1. Used widely in motors, fans. 2. High performance & Long life Capacitor. 3. Work well even in hot area. Main Feature:Low dissipation factor,small inherent temperature rise.excellentself-healing stability,safety and high voltage withstand,etc. Applications:To start and run single phase motors in alternating current usage. #CBB61 Motor run capacitor: Capacitance Range1μF~30μFRated Voltage250VAC~500VAC(50/60Hz)Capacitance Tolerance±5% or Fulfilled upon requestLoss TangentTgδ≤0.002(50Hz-100Hz)Standard Temperature-25ºC~+70ºC,-40ºC~+85ºCClimate Class25/70/21, 40/85/21Test VoltageBetween terminalsAC≥2.00Un 2S NO BREAKDOWNBetween terminals and case AC≥2000V 2S NO BREAKDOWN Insulation ResistanceBetween terminalsRj·C≥3000MΩ.μFBetween terminals and caseRj≥1000 MΩ.μF Security LevelP0, P1, P2 Executing StandardGB/T3667.1-2005, IEC60252-1:2001, IEC252    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
