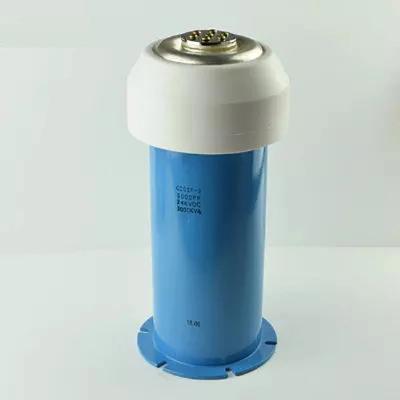

Twxf135285 20kv 5000PF 3000kVA Ceramic Water Cooled Tank Capacitor

TWXF135285 20KV 5000PF 3000KVA water cooled tank capacitorcomplex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies.  specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.Specification data  High frequency high power RF Watercooled ceramic capacitors FeaturesLow loss Class 1 ceramic dielectric materialsNoble metal electrodes with low self heatingVery low capacitance-temperature characteristics availableCorrespondingly low tuned frequency drift.Low Inductance construction, higher frequency useHigh voltage, High Reactive Power RatingsLow magnetic susceptibilityHigh frequency high power RF watercooled ceramic capacitors ApplicationsRadio broadcast transmittersHF filter, By-Pass & Coupling CircuitsHigh power matching tuned circuits, Antenna circuitsHigh power matching networks, Plasma GeneratorsHigh quality medical imaging systems (MRI)Induction and Dielectric Heating EquipmentIndustrial Applicationsfrequency high power RF plate ceramic capacitors are 100% tested of the below parameters• Capacitance• Tolerance• Dielectric withstanding voltage• Dissipation Factor• Insulation ResistanceProcess and inspection data are maintained on file and available upon special request./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
