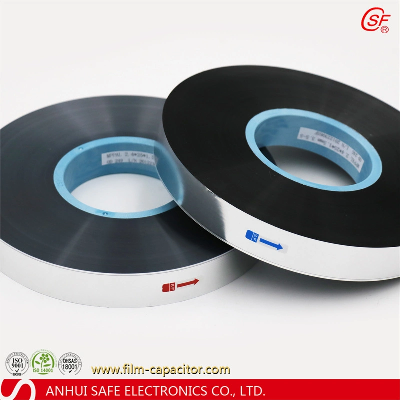

Metallized PP/Pet Film for Capacitor Use

1.Basic information (1)Types Of Metallized Layer:Al Metallized Film , Zn/Al Metallized Film(2)Width:4.5-130mm(3)Thickness:2-12um(4)Margin Value:0.5mm 1.0mm 1.5mm 2.0mm 2.5mm(5)ID(mm):75(6)OD(mm):180/240/270/320(7)Processing Type:Vacuum Coating Capacitor Film(8)Packaging Details :To be shipped in vaccum-sealed metallized plastic bags(9)Port :Shanghai Or Ningbo2.Types of Metallized Layer  Base filmPP PETNormal thickness2.0μm ~12.0μm1.9μm ~12.0μmMargin typeSingle, two marginsCoating metalZinc-Aluminum alloy,AluminumCoating sideSingle,two sidesEdge structureHeavy edgeCutting typeStraight cut, wave cut3.Specifications of metallized film(MPP Film):PropertiesUnitTypical valueDensityg/cm30.905±0.005 Thicknessµm2.0 ~ 12Tensile StrengthMD (MPa)≥100Elongation at BreakMD (%)20~200Elastic ModulusMD (MPa)2800Heat ShrinkageMD (%)≤5 ( 120°C, 10min)Wetting TensionmN/m38  (Corona treated side)Surface Roughnessµm0.08Melting PointºC172Volume ResistivityΩ.m>1015Break-dowm VoltageV/µm≥350 ( 23°C, DC )Dielectric Constant 2.2  (20ºC,1KHz)Dissipation Factor ≤4×10-4 (20ºC,1KHz )RCΩF≥5×104(MPET Film):PropertiesUnitTypical valueDensityg/cm31.4 Thicknessµm1015  ( 23°C, Humidity 50%)Dielectric Constant 3.2  (20ºC,1KHz)Dissipation Factor-≤60×10-4 (20ºC,1KHz )RCΩF≥1×1044. WORKSHOP We have have 6 large-scale high vacuum coating equipment, 20 intellectualized slitting machines. 5.Certificate 6.Application7.Packing1)Film rolls are packed in plastic bags, vacuumed and put into desiccant for heat sealing.2)The Bags are marked with type labels, mark thickness width, free margin width and resistance.3)The bags are packed in carton cases.4)The cartons are wrapped by wooden cases or reinforced carton.8. Delivery Lead time: 7-15days after payment confirmed .9. Question and answer 1 .Q: Are you a manufacturer or a trading company?A: We are a manufacturer located in Tongling  Anhui,Closed to Shanghai,NanJing. Welcome to visit our factory.2.Q: What certificates do you have?A:We strictly executive ISO9001 quality management system certification,and our products won CQC,TUV,UL,VDE and other performance certification,compliance with EU ROHS directive, with SGS report.3 .Q: Can you provide free samples?A:  Yes, we can. Free samples are available, but the postal fee should be paid by your side            We will be at your service for  7*24 hours  !/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
