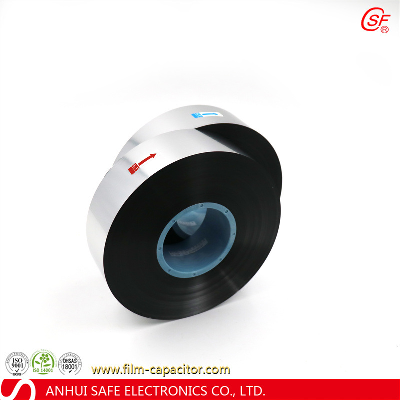

Zn-Al Mpp Capacitor Grade Metallized Polypropylene Film

Types of Metallized film Layer: Metallised Film Introduction             Base filmPP PETNormal thickness2.0μm ~12.0μm1.9μm ~12.0μmMargin typeSingle, two marginsCoating metalZinc-Aluminum alloy,AluminumCoating sideSingle,two sidesEdge structureHeavy edgeCutting typeStraight cut, wave cut  Square Resistance Reinforced resistanceNormal resistance(2~4)Ohm/sq(6~9)Ohm/sq(1~3)Ohm/sq(4~6)Ohm/sq(1~3)Ohm/sq(12~18)Ohm/sq(2~4)Ohm/sq(17~23)Ohm/sq  Inside/outside core diameter:Inside core diameter/ToleranceOutside core diameter/Tolerance75mm+1/-0.5mm220280320±20mm±20mm±20mmNote: A pair tolerance of outside core diameter ≤2mm.Metallised film metallization typeSpecifications of metallized film:(MPP Film):  PropertiesUnitTypical valueDensityg/cm30.905±0.005Thicknessum2.2-15Tensile StrengthMD(MPa)≥100Elongation at BreakMD(%)20~200Elastic ModulusMD(MPa)2800Heat ShrinkageMD(%)≤5 ( 120ºC, 10min)Wetting TensionmN/m38(Corona treated side)Surface Roughnessµm0.08Melting PointºC172Volume ResistivityΩ.m>1015Break-dowm VoltageV/µm≥350(23ºC,DC)Dielectric Constant 2.2 (20ºC,1KHz)Dissipation Factor ≤5×10-4 (20ºC,1KHz )(MPET Film): PropertiesUnitTypical valueDensityg/cm31.4Thicknessum=12Tensile StrengthMD(MPa)≥84  ≥108  ≥120Elongation at BreakMD(%)≥22  ≥33  ≥44Elastic ModulusMD(MPa)3500Break-dowm VoltageV/>=200        >=250(23ºC,DC)   (23ºC,DC)Heat ShrinkageMD(%)1015Dielectric Constant 3.2Dissipation Factor ≤60×10-4RCΩF≥1×104   Note: Other specifications of metallised film can be negotiable.  Metallised film Packing1)Film rolls are packed in plastic bags, vacuumed and put into desiccant for heat sealing.2)The Bags are marked with type labels, mark thickness width, free margin width and resistance.3)The bags are packed in carton cases.4)The cartons are wrapped by wooden cases or reinforced carton.Metallised film Storage: Metallized film should be stored in its original package with temperature 5 - 35ºC and humidity less than 85%RH before using.Metallized layer is easily oxidized when exposure to moisture. Therefore, the film should be used as soon as possible when opened. The recommended temperature is 15 -25ºC with humidity less than 60%RH after opening.With original sealed package, and stored as mentioned above, the storage time can be as following: Al metallized film: 12 months from the delivery date. Al/Zn Alloy metallized film: As zinc is quite unstable , the storage period (from delivery date) depends on the resistance of the film:≤10 Ohm/sq: 6 months 10 ~30Ohm/sq: 3 months >30Ohm/sq: 1monthAppliactions of Metallised filmCompany HonorOur company has obtained ISO9001 quality management system certificate, ISO14001 environment management system certificate, OHSAS18001 occupational health and safety management system certificate.A Tour of metallised film plant Metallised film MetalliserMetallised Film slitterOur Advantages: Aim : Quality first, Customer formost, knight service, Sustainable improvement, to be reliable supplier of metallised film.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
