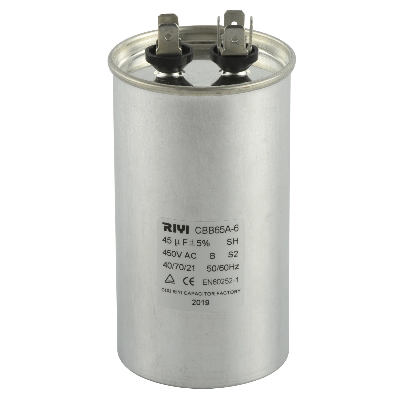

Cbb65 45UF 450V Motor Run Capacitor for Air Conditioner

  CBB65A AC Motor Capacitor1. Features and usesThe capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, and steady electricity performance, anti-striking current, strong over-carrying capacity,etc. It is safe and reliable with inner anti-explosion device. Applicable for AC compressor, helpful to start and run electromotor.2. Technical parameter Rated Voltage:      200VA~500VAC Rated Frequency:     50/60Hz Capacitance Range:   1~120uF Capacitance Tolerance:   ±5% Tangent of loss angle tan : δ≤  0.2% (20ºC,100Hz) Standing Voltage: Between Terminals:   2.0Un/2s  No flashover or permanent breakdown, Terminals to case:  ≥ 2100VAC/2s No dielectric breakdown or flashover Highest allowable voltage:    1.1 times of rated voltage Maximum allowable circuit:    1.3 times of rated circuit Class of safety protection:    S2 .S3 Executing Standards:   IEC60252, GB/T 3667.1   ,UL810Company   profileCixi Riyi Capacitor Factory is specializing in the production of metallized polypropylene film capacitors manufacturers, the company occupies 25,000 square meters, owns fixed assets of 30 million RMB, with an annual outputvarious types of capacitor capacity of 60 million, the company currently employs 280 people, including 12 engineers and technicians, quality control staff of 25 people. Strong technical force, advanced equipment, superb technology, detection means perfect, modern management model, based on market-oriented to the needs of customers for the purpose of continuous research and development and production of series capacitors, the enterprise passed the ISO9001:2015quality management System Certification and ISO14001:2015environment system certification, all kinds of products have the certification of CQC, TUV, VDE, IMQ, UL, CE and so on. Since its inception, work hard, pursuit of excellence and dedication to the electronics industry, power industry, household electrical appliance industry, and high-tech companies supporting services, has won the trust of our customers and co-operation, At present, the main supporting services with well-known brands of the domestic Haier, Midea, Galanz ,while about 50 percent of products exported to Europe, America and Southeast Asia countries and regions, Riyi Capacitor look forward to your cooperation for a better tomorrow.                                                      Production Process                                                                                                                                                                                                               /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
