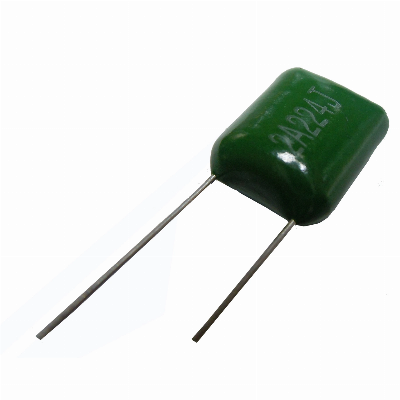

Cl11 Mylar Film Capacitors for Audio Amplifier

Film Capacitors (CL11)ELECSOUNDFeatures: Small size, light weight and low cost High stability and reliability Dissipation factor is small because the leads are directly welded to electrodes Widely used in DC and pulsating circuits of broadcasting and TV-sets, Communication Equipment, monitor, energy saving lamps and various electronic equipments Technical Specifications: Reference Standard: GB6346 (IEC 60384-11) Climatic Category: 40/85/21 Rated Voltage: 50V, 63V/100V, 160V, 250V, 400V, 630V, 1000V, 1200V Capacitance Range: 0.001 ~ 0.47μ F Capacitance Tolerance: ± 5% (J); ± 10% (K) Voltage Proof: 2UR (5S) Dissipation Factor: ≤ 0.01 (20 , 1 kHz) Insulation Resistance: ≥ 10000MΩ , Cr ï ¼ 0.1μ F (20 , 1 min) ≥ 30000MΩ , Cr ≤ 0.1μ F (20 , 1 min) Elecsoud offer many kinds for film capacitors. We offer polyester film capacitors and popypropylene film capacitor. Radial and Axial type. Below is our series. And we can offer speedy deliver with competitive prices: CL11 Polyester film capacitor CL20 METALLIZED POLYESTER FILM CAPACITOR-AXIAL CL21 Metallized polyester film capacitor CL21X Miniaturized metallized polyester film capacitor CL62 Metallized polyester film capacitor for AC use CBB13 Polypropylene film capacitor CBB20 Axial-type metallized popypropylene film capacitor CBB21 Metallized polypropylene film capacitor CBB62 Metallized polypropylene film capacitor for AC use CBB81 High-voltage Metallized polypropylene film capacitor Metallized Polypropylene Film Capacitor X2   Features:Small size , light weight and low costHigh stability and reliabilityDissipation factor is small because the leads are directly welded to electrodesTechnical Specifications:Reference Standard:    GB6346 (IEC 60384-11)Climatic Category:      40/85/21Rated Voltage:50V,63V/100V,160V,250V,400V,630V,1000V,1200VCapacitance Range:     0.001 ~ 0.47μFCapacitance Tolerance:  ±5% (J) ; ±10% (K)Voltage Proof:          2UR (5S)Dissipation Factor:      ≤0.01 (20ºC, 1 KHz)Insulation Resistance: ≥10000MΩ, Cr > 0.1μF (20ºC, 1 min)≥30000MΩ, Cr ≤ 0.1μF (20ºC, 1 min)  Dimensions: (mm)μF63/100VDC160VDC250VDC400VDCWHTDPWHTDPWHTDPWHTDP0.001610.52.80.53.56.5113.40.53.56.5113.50.53.5611.540.540.0015610.52.80.53.56.5113.40.53.56.5113.50.53.56.51240.540.0018610.52.80.53.56.5113.40.53.56.5113.50.53.56.512.540.540.0022610.52.80.53.56.5113.40.53.56.5113.50.53.56.512.540.540.0027610.52.80.53.56.5113.40.53.56.5113.50.53.57134.50.560.0033610.52.80.53.56.5113.40.53.56.5113.50.53.57134.50.560.0047610.52.80.53.56.5113.40.53.56.5113.50.53.581450.560.0056610.52.80.53.571140.5571140.558.5145.50.560.0068610.52.80.53.571140.5571140.558.5145.50.560.00826.510.530.53.581340.5581340.559.5156.70.570.016.510.530.5581340.5581340.559.5156.70.570.0157.511.53.50.558.513.54.50.558.513.54.50.551015.570.570.022811.53.50.559145.70.55.59145.70.55.51016.570.570.027811.540.5510156.30.5610156.30.5611.51970.57.50.033811.540.5510156.30.5610156.30.5611.51970.57.50.0399124.50.5511.515.570.56.512.517.58.50.56.513.5208.50.690.0479124.50.5511.515.570.56.512.517.58.50.56.513.5208.50.690.0569.512.550.57.511.515.57.50.6713.8218.50.67.515.521.510.50.690.0689.512.550.57.512.515.57.50.6713.8218.50.67.515.521.510.50.690.0821112.560.57.51416.57.50.6816229.50.68.51722.5110.611.50.11112.560.57.51416.580.6816229.50.68.51722.5110.611.50.1512156.50.68 0.18141570.690.22141570.690.271617.580.6100.331617.580.6100.391617.58.50.6100.471617.58.50.610Note: Capacitors of special specifications are made according to customer's need.Product OverviewsWe currently offer a broad range of capacitors, LEDs, Cermet Trimming Potentiometers, PCBs, Semiconductors, Transistors, Zinc Oxide Varistors, Switches and Resistors. Company InformationElecsound is an ISO Certificated  manufacturer of high quality, high reliability electronic components, formed in January of 1996. Our staff has over 10 years of experience with excellent English. All of our employees have a strong work ethic and a strong commitment to provide the high quality products that consistently meet or exceed our customer's requirements. CertificatesPackaging & ShippingFAQ1: How long is your lead time? It depends. Normally, it is 2-6 working days if the goods are in stock, or it is 7-40 days if the goods not in stock.   2: What is your terms of payment ? For small amount orders, 100% better paid by PayPal or T/T in advance. For large amount orders like more than 10000USD, 30% T/T in advance , balance fully paid before shipment.   3. Do you have any MOQ limit for an order? Yes, we have MOQ. different items have different MOQ. We will mark MOQ when we quote.   4: How to proceed an order? Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and pay deposit for the official order. Finally, we arrange the production and ship once it's ready.     5: Do you accept Alibaba online orders? Sure!! We prefer to fulfil orders under Alibaba Trade Assurance system, since b
