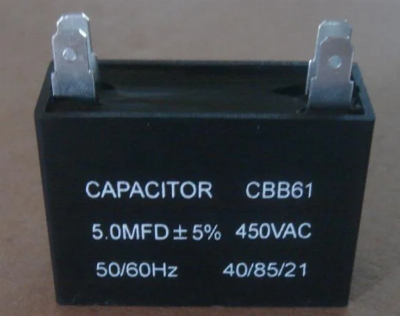

Film Running Capacitors for Electric Fan

Film Running Capacitors for Electric FanFilm Running Capacitors for Electric Fan is mainly used for washing machine, air conditioner, air conditioner, refrigerator, freezer, dishwasher, dryer and other household appliances, single phase motor, UPS power supply system, etc. The main features include good self-healing performance and stable performance.Shock resistance current, high overload capacity, long service life, low loss, high insulation resistance.In addition, the capacitor has built-in explosion-proof device with high safety. At the same time, it can be equipped with built-in or external inductance to make up the capacitive inductance module.CBB65 Capacitor Main Technical Data:  Reference StandardGB/T 3667.1-2005,IEC 60252-1,UL810Climatic Category40/70/21,40/85/21Dissipation Factor≤0.002(100Hz,C≤10μF)≤0.006(100Hz,C≤33μF)≤0.008(100Hz,C>33μF)Insulation Resistance (IR×CN)≥3000MΩCapacitance Tolerance±5%,±10%,±15%Rated Voltage (UN)250/300/400/450/500/560VRated Frequency (fN)50/60HzClass of Operation Class C ( 3000h ), Class B ( 10000h )Class of Safety ProtectionS1(P1),S2(P2)Flame Retardant GradeUL94V-0Leading-out StructureTerminal or WireSafety ApprovalsCQC,TV,ULIdnductance16-60μHStorage Temperature-40ºC~70ºC,-40ºC~85ºCCapacitance Range (CN)1μF~110μFMaximum Permissible Operating Voltage1.1UNFeatures  1)Very small dissipation factor, small internal temperature rise.2)High insolation resistance.3)Good capacitance stability.4)Excellent self-healing property.5)Anti-shock current, large overload capacity.6)Small volume, light weight.7)Equipped with a pressure explosion-proof apparatus for safe and reliable usage.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
