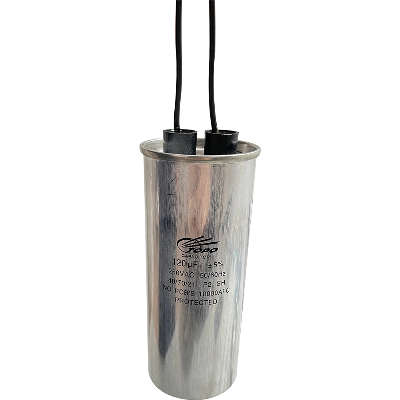

AC Refrigerator Run Capacitor Cbb65 120UF 250V with UL TUV

CBB65 SeriesConstructionDielectric: polypropylene filmAluminum Round & Oval canOil typeFeaturesSelf-heating propertiesLow dissipation factorExplosion proof deviceHighest safety level P2 safety class to IEC 60252-1High insulation resistanceTypical applicationsFor general sine wave applications,mainly as motor run capacitor, air connditioner.TerminalsFast onMounting parts (optional)Threaded stud at bottom of can (M8, max.torque=5 Nm)Fast fixation for mounting into a hole of Φ8 mm     Technical data and specificationsReference standardsIEC 60252-1Safety class according IEC 60252-1P2Life expectancy to IEC 60252-13,000(C) ~ 10,000h(B)Rated capacitance CR2µF ~ 150µF (MFD)Tolerance± 5%Rated voltage VR110VAC ~ 630VACRated frequency FR50/60HzMaximum permissible votage Vmax1.1 x VR (VR=Rated voltage)Maximum permissible current Imax1.3 x IR (IR=Rated current)AC test voltage terminal to terminal VTT2 x VR, 2s (routine test)2 x VR, 60s (type test)Insulation voltage terminal to case1.75 x VR, 2s (type test)1.75 x VR, 60s (routine test)Dissipation factor tan δ≤0.002 (50Hz)Climate types25/085/21 to IEC 60068-1  Dimensions (mm) (Single Bobbin)uF/MFDCylinder CaseOval Case370VAC440/450VAC370VAC440/450VACΦHΦHLxBxHLxBxH24060406050x32x6050x32x6044060406050x32x6050x32x6064060406050x32x6050x32x607.54060406050x32x6050x32x6084060407050x32x6050x32x60104070407050x32x6050x32x60124070408050x32x6070x45x8012.54070408050x32x6070x45x80144080408050x32x6070x45x80154080408050x32x6070x45x80164080459070x45x8070x45x80184080459070x45x8070x45x80204080459070x45x8070x45x8021.54080459070x45x8070x45x8022.54080459070x45x8070x45x80254590459070x45x8070x45x8030501005010070x45x9070x45x8035501005011070x45x8070x45x8040501105011070x45x9070x45x11045501105012070x45x9070x45x11050501105012070x45x9070x45x11055551305513070x45x11070x45x11060551305513070x45x11070x45x13070601206012070x45x13070x45x13080601206013070x45x13070x45x13090601206013070x45x13070x45x130100601206013070x45x13070x45x130Dimensions (mm) (Double Bobbin)uF/MFDCylinder CaseOval Case370VAC440/450VAC370VAC440/450VACΦHΦHLxBxHLxBxH15 + 1.54590459070x45x8070x45x8015 + 2.54590459070x45x8070x45x8015 + 34590459070x45x8070x45x8015 + 54590459070x45x8070x45x8020 + 1.54590459070x45x8070x45x8020 + 34590459070x45x8070x45x8020 + 54590459070x45x8070x45x8025 + 1.545905010070x45x8070x45x9025 + 2.545905010070x45x9070x45x9025 + 545905010070x45x9070x45x9030 + 2501005010070x45x9070x45x9030 + 5501005011070x45x9070x45x9035 + 1.5501005011070x45x9070x45x9035 + 3501005011070x45x9070x45x9040 + 2501105011070x45x9070x45x11040 + 2.5501105011070x45x9070x45x11050 + 1.5501205012070x45x11070x45x11050 + 3501205012070x45x11070x45x11050 + 5501205012070x45x11070x45x11050 + 6501205012070x45x11070x45x11055 + 4551205513070x45x11070x45x13055 + 6551205513070x45x11070x45x13060 + 1.5551205513070x45x13070x45x13060 + 3551305513070x45x13070x45x13060 + 5601356013570x45x13070x45x13060 + 7.5601356013570x45x13070x45x13065 + 5601356013570x45x13070x45x13065 + 7.5601356513570x45x13070x45x13080 + 6651356513570x45x13070x45x13080 + 7.5651356513570x45x13070x45x130Note: Can be manufactured according to customer's request.Capacitors DetailsHigh-Return SolutionsSpecifically to your satisfaction.Most of our customers have been doing business with us for more than a decade, with full trust in our capabilities and reliability. We take pride in solving different challenges to customers in a productive way. Maybe you need a special collection, a distinct packing, an urgent delivery or any other supports, our team is here ready to offer you the integrated solutions and save you more. OEM and ODMContract manufacturing and housing molding for your brand.Your brand and personal preferences could be custom on the products and packings. As a comprehensive capacitor manufactuer, Topo possesses the extensive custom design capabilities to meet your specific requirements, which help you to extend your brand's advantages. ECO Friendly and Full MaterialSpeaking of quality, green material is the very start. Topo only utilizes the materials friendly to the environment with a social responsibility perspective. Besides, great quality films make excellent capacitors. We never cut corners on materials, but apply full materials for each parts. Free Sample for TestingAn adequate amount of free samples could be offered for your testing of the important electrical parameters. From these aspects those prove that our products are of high quality and can stand the tests.Rest assured and get your samples right away! FAQsTopo knows about your general concerns. Check the Q&A that will help you save time and worries in the first place. If your question is not listed, please contact us and we are happy to help.Can the Topo capacitors be used in the AC and DC circuits?Generally, our capacitors could apply with both circuits of AC and DC. Yet most of our products are for AC circuit purpose.Are the Topo capacitors compliance products of EU CE and RoHS?Yes. All of our capacitors comply with the CE, VDE,
