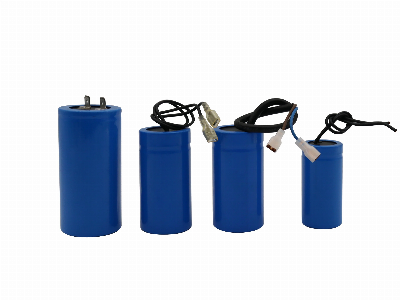

1.SpecificationsMOTOR START CAPAClTORSMain Feature:Bakelite caseVoltages from 110V AC to 330V ACUL Recognized CapacitorsApplicable Scope :To start and run single phase m0tors in alternating current usage,And it suit for single phase A.C. motors with frequency of 50/60Hz.General Specifications:Operating Temperature:-25~+65ºCVoltage Range:110~330V ACCapacitance Range:21~1280μfCapacitance Tolerance:+/-20%Operate Frequency:50/60HzCase Size:8 Standard Size from1 437"x2.750" ~2 562"x4.375"/36mm x 70mm~65mm x111mmTermination:1/4 " Quick Disconnect Terminals(Std.)Performance Specification:Meets Requirements of ElA-463-AProduct DescriptionCD60 start capacitor is developed and researched according to standard of AmericanElectronics Association (ANSI/EIA-463).The external case of the capacitor is made ofbakelite plasticized which Character is not only good insulating resistance. strong resistance damaged but also protecting electro liquid as good sealed feature. It is popularused for the super AC application as good life, higher degree of reliability and stability. Case size of Standard Products (mm) Rated VoltageCapacitance Range110-125V165V220-250V330VD X H(mm)21-2536.5 x69.8536.5 x69.8536.5 x69.8536.5 x69.8525-3036.5 x69.8536.5 x69.8536.5 x69.8536.5 x69.8530-3636.5 x69.8536.5 x69.8536.5 x69.8536.5 x69.8543-5336.5 x69.8536.5 x69.8536.5 x69.8546.02 x85.7253-6436.5 x69.8536.5 x69.8536.5 x69.8546.02 x85.7267-7736.5 x69.8536.5 x69.8536.5 x69.8546.02 x85.7288-10836.5 x69.8536.5 x69.8536.5 x69.8546.02 x85.72124-14936.5 x69.8536.5 x69.8536.5 x69.8552.37 x111.12161-19336.5 x69.8536.5 x85.7236.5 x85.7252.37 x111.12200-24036.5 x69.8536.5 x85.7236.5 x85.7252.37 x111.12216-25936.5 x69.8546.02 x85.7246.02 x85.7252.37 x111.12270-32436.5 x69.8546.02 x85.7246.02 x85.7265.5x111.12300-36036.5 x69.8546.02 x85.7246.02 x85.7265.5x111.12340-40836.5 x85.7246.02 x85.7246.02 x85.7265.5x111.12400-48046.02 x85.7246.02 x85.7246.02 x85.7265.5x111.12430-51646.02 x85.7246.02 x85.7246.02 x85.7265.5x111.12Note:All other types of products in form can be fulfilled at the request of customers. Case size12345678Dimension(D x H)(mm)36.5 x69.8536.5 x85.7236.5 x111.1246.02 x85.7246.02 x111.1252.37 x85.7252.37 x111.1265.50 x111.12Dimension(D x H)(mm)1.437 x2.7501.437 x3.3651.437 x4.3651.812 x3.3651.812 x4.3652.062 x3.3652.062 x4.3652.562 x4.365 2. DESCRIPETION 3.FACTORY WORKSHOP /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
