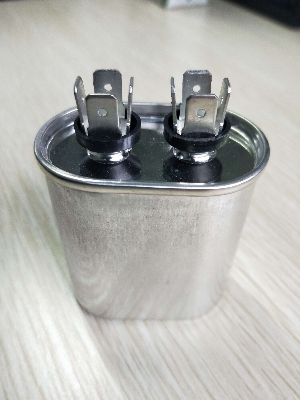

Factory Made Cbb60 Air Conditioning Run Motor Capacitor

CBB60 CAPACITORPackaging: Exporting Standard Brown Carton Packing.                   50pcs or 100pcs/inner box, 2 boxes or 4 boxes/carton.                   Offer bulk packing, Individual box packing, use pallet. Or as your request.Delivery Detail: 15 to 25 days, depends on your quantity  Product DescriptionCD60 start capacitor is developed and researched according to standard of AmericanElectronics Association (ANSI/EIA-463).The external case of the capacitor is made ofbakelite plasticized which Character is not only good insulating resistance. strong resistance damaged but also protecting electro liquid as good sealed feature. It is popularused for the super AC application as good life, higher degree of reliability and stability.  Applications: CBB60 COHERER POLYPROPYLENE CAPAClTORS SERlESMain Feature:Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.Used widely in washing machine,water pump,air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage. Techinnical Parameters:Capacitance range1-150μfRated voltage Un250v.ac/400/450V.acRated frequency50Hz;60HzCapacitance tolerance±5%;±10%Climatic category-25+70°CDissipation factor(at 50Hz-Hz and 20°C)≤0.002(100Hz,20°C)Test voltage between terminals2×Un for 3sTest voltage between terminals and case2×Un+1000VDC FOR 2sReference standardEN 60252-1:2001;IEC252/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
