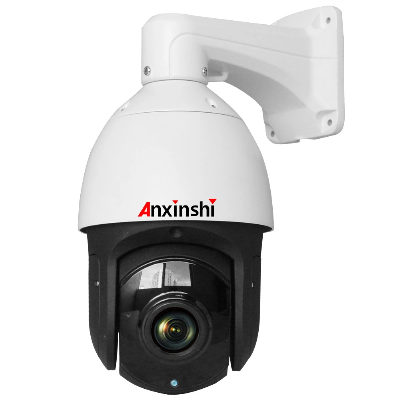

5.0MP CCTV High Speed Dome Camera

 5.0MP CCTV High Speed Dome CameraCamera: HD 5.0Mpixes 1/3" CMOS Sensor, 27x, f=4.7mm~94mm, D/N( ICR-Cut), DWDR , Color: 0.05lux, B/W:0.01lux. Dome Features: 1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption  2. Imported array IR LED, auto adjust zoom according to different distance 3. IR range 300M 4. With digital temperature controlling system protecting IR LED  5. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S. 6.AHD output /TVI output / CVI output / CVBS output / D1 / AHD720P / AHD960H / AHD1080P / AHD 3.0MP / AHD 4.0MP / AHD 5.0MP output 7. 5 tours, DC12V Form parametersModeName and Description5MP HD High Speed Dome Camera ASHD698-027-50 OutdoorCameraCamera NameAS-AH027 (27X D/N))Image Sensor 1/3"  CMOS (NVP2477+05A10)Effective Pixels5.0 Mpixes Horizontal Resolution2592*1944Min. Illumination0.05Lux :Color/0.01 Lux:B/WZoom27X, f=4.7mm~94mm  F1.6(W)~2.7(T)Day/NightAUTO/COLOR/BWSNR≥50dB(AGC OFF)WDRDWDRWhite BalanceAuto/Indoor/Outdoor/ManualElectronic shutter 1/30s~1/10,000sDome FeaturesCPU Type32 bit ARM CPULuminary Array Φ20 6pcsNight vision distance 300MLamp control Auto, Manual, by ZoomAddress0~255(soft address and hard address)Pan Range360° continued rotationTilt Range0~90°(Auto Flip)Manual pan speed0~240º/SManual tilt speed0~120°/SPreset speed400°/SActual preset Accuracy±0.10°Preset points255Operation OSD languageChinese /EnglishOSD Displaydome menu & camera menu adjustmentHome positionReturn to preset/scan/pattern/ if there is no command in the specified period. Operation recallrecall operation zoneTour5Communication ProtocolPelco D, Pelco P Intelligent Threedimensional ScanAuto Pan & Tilt &Zoom /ManualPattern group 3Programmable(Pan/Tilt/Zoom )Speed adaptionSpeed slows down automatically when zoom inIntelligent poweroff real time memoryautomatic save functions setting ,automatic wake up tour functionCamera Menu operationsupport the operation of camera set upManual continued Auto Scan Non-limited position of manual continued Auto scan GeneralWork temperatureExternal-35ºC~55ºCWork Humidity0%~90% (Non condensing)PowerDC12V±10%; 5AConsumption
