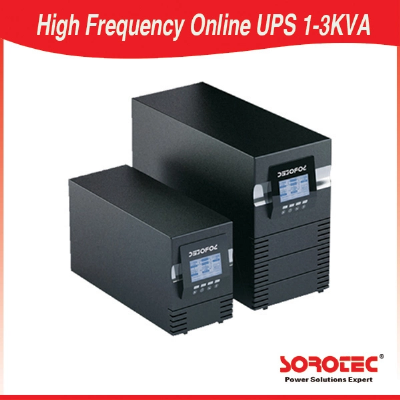

Larger LCD Display Online UPS with Sinewave UPS 1K/10K/15K/20KVA

Larger LCD Display Online UPS with Sinewave UPS 1K/10K/15K/20KVAApplications:Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom. Key Features:1. Large blue back light LCD for detailed Real-time UPS status display. 2. Advanced online pure sine wave power supply system, with bypass repair switch, It can provide a reliable, high quality AC power source to the precision equipments, can be used widely in different fields. 3. Widely used to computer equipments, telecommunication systems and Industrial automatic control equipments. 4. Truly online design, different from offline, it can adjust the input voltage, filtering, when the AC break off, the UPS will provide an uninterruptible power source from the backup batteries. 5. UPS will change to bypass mode when overloading or inverter fault, when overloading remove, UPS will turn to inverter mode automatically. 6. N+N Parallel Redundancy and Capacity expansion for 6-20K(up to three units) Technical Specifications of Telecom UPS HP9116C 1-10K (1pH in/1pH out)ModelHP9116C 1-3KVA1KT1KT-XL2KT2KT-XL3KT3KT-XLRated Power1KVA/0.7KW2KVA/1.4KW3KVA/2.1KWRated Voltage220/230/240VACRated Frequency50/60 HzRated FrequencyVoltage Range115~295VAC (±3VAC)Frequency Range50HZ: (46~54HZ); 60HZ:(56HZ~64HZ)Power Factor> 0.98OutputVoltage Regulation220/230/240X (1±2%)VACFrequency Regulation50/60 Hz±0.05HzPower Factor0.7/0.8 (Optional)Standard 0.7Voltage DistortionLinear load
