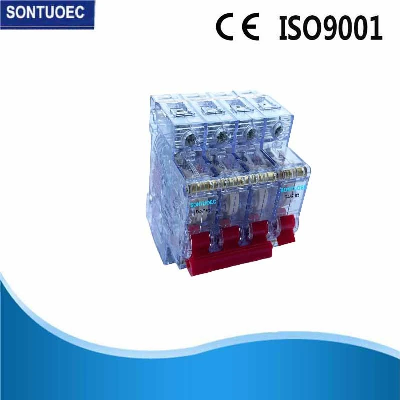

Dz47-63 Transparent Cover Miniature Circuit Breaker Handle Control Switch

Product DescriptionDZ47-63  Transparent Cover Miniature Circuit Breaker Plastic Control Switch 1P 2P 3P 4P Overload and Short-circuit Protector MCB:GeneralDZ47-63 series high breaking miniature circuit breaker has the features of structure advanced, performance reliable, breaking capacity high, appearance elegant and its shell and parts are made of material with impact resistance, strong flame-retardant feature. It is suitable to power system of 50 or 60 frequency, Ue 400V and below, Ui 63A and below. It is mainly applied at office building, residence, for lighting, power distribution and overload and short circuit protection of equipment. Normally, it also can be used as the not frequent transfer of power system. It conforms to the standards IEC 60898.1 and GB10963.1 Specifications Rated voltage(V)PolesRated current(A)Rated short circuit breaking capacityTest breaking capacity(KA)Power factor2301,26,10,16,20,4.5 ,60.65~0.70230/4001,225,32,4.5, 64002,3,4404.5,  62301,250,633,   4.5  0.75~0.80230/4001,23,   4.54002,3,43,   4.5 Remark:1. mechanical life: 20,000 times(off-on).2. heat resistance: category 2 (temperature 55°C,relative humidity 95%).3. wiring is terminal with clamp, cable dia.: 25mm2 Test current(A)Rated current(A)Requested timeResultStart stationRemark1.13Inallt>=1hDon't tripCool 1.45InAllT
