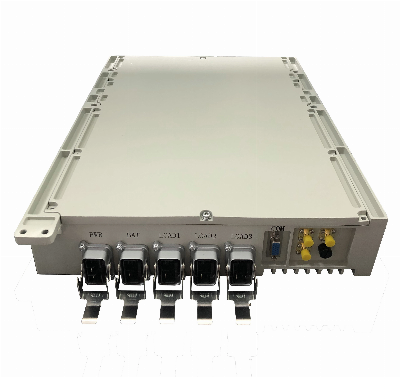

5g Base Station Power Supply Module

Pole wall  mounting Rectifier Power module 48VDC 2KWKEY FEATURES1. Pole wall  mounting Rectifier Power module 48VDC 2KW2. IP65 Outdoor, Hot swap Function 3.High power efficiency up to 95%4.Bulit-in 3 DC Port for Load and 1 Port for Battery 5. Perfect protection for input and output and battery 6. Multiple wire or wireless remote  communication ( Option) 7. 3 PCS parallel Function  to  Expand capacity 8. Suitable for lithium batteriesTechnical Specifications  ITEMModelBASE2000 Rated power2000WInputNominal voltage220VAC L+N+GVoltage range176Vac~264VacFrequency45Hz~55HzMax. surge current150%OutputTo Loads 48VDC,3* > 40A DC Voltage Range - 43Vdc~-58Vdc , adjustable ,  precision ±0.5%Charge current48VDC, 50Amp BatteryRated voltage48VDC, Lead Acid or Lithium battery  ( choice while order ) Display LED Normal / fault / alarmSoft-Start3s~10sProtectionInput High / low Voltage , Output High / Low Voltage, Over Load, Power Limit  , Short Circuit., Over temperature Lightning protection, Ground fault ,CommunicationRS485/RS232, NB-IoT, Bluetooth, 4G SIM , GPS, Serial communicationInstallationWall hanging, pole holding, Angle steel towerOperating ambient temperature -40ºC~+55ºCStorage ambient temperature -40ºC~+60ºCOperating/Storage ambient ≤95% No condensation(40ºC±2ºC)Atmospheric pressure70kPa~106kPaImpact Acceleration 150M/S²  with 11 secondsVibrations(10~55)Hz, Amplitude of 0.35 mmHeat dissipationNatural heat dissipationProtection gradeIP65Noise
