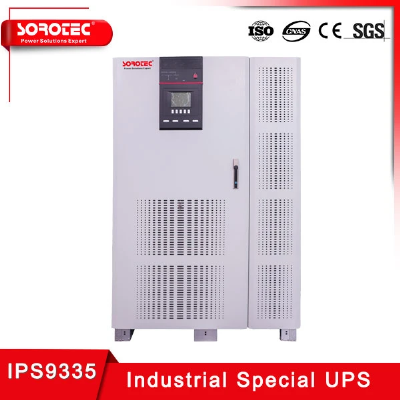

Industrial Special UPS 10-160kVA

Industrial Special UPS 10-160KVAKey Features:1.Adopt full digital control technology2.Intelligent detection and monitoring function3.Digital control and static switch zero switching.4.Input/output full isolation5.DC UPS isolated with utility power completely.6.Cubicle design with power standard.7.Multifunctional protection for overvoltage,low voltage,8.Overcurrent ,short circuit and so on.9.Large-screen LCD monitor Chinese and English operation interface.10.Ultralong 256 event records,user-friendly analysis and manag-ement11.to the situation of power supply.12.Static bypass has a strong anti-overload capacity.Control SystemAdopt microprocessor bus control technology and ensure the realtime control of rectifier,inverter,static switch as well as coordination of each power part,characterized by increased control of aging,higher reliability,Improve the efficiency of complete UPS system.the output technical parameters are better than taht of the general capacity of equipment.ModelPower(kvA)IPS9315C 10-100KVA10KVA15KVA20KVA30KVA40KVA60KVA80KVA100KVA120KVACapacity9KW13.5KW18KW27KW36KW54KW72KW90KW108KWInputRated voltage 380/400/415 vac three-phaseVoltage range ±20%                Frequency range50/60HZ± 5%Power factor≥0.9Current harmonic distortion
