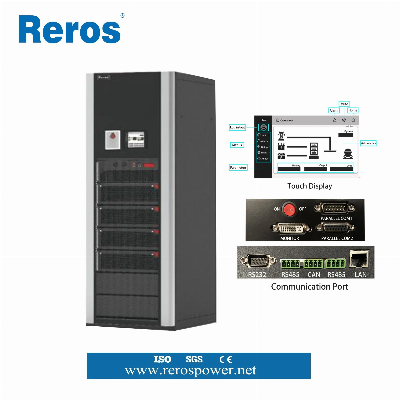

System IntroductionSystem capacity has 150KVA,250KVA,500KVA and etc models, power module is 25KVA, users can choose freely according to the load; System is for modular structure, consist of static switch module, monitoring module and N power module in parallel, module N + X redundancy, can proceed online expansion according to user requirements; Monitor module, static switch module and power module can be online hot plug; system can be setted to 1/1, 1/3, 3/1 or 3/3 come into and outgoing line way as requirements; Adopt master-slave parallel, multi-stage distributed control technology, no operation bottleneck, reliable performance; All power module share battery pack ,has perfect battery management function :battery has self-discharge function, automatic floating conversion function, temperature compensation, automatic flow function ;Any power module has the balance of input, output, and charging power distribution function;AC input adopt continuous current mode (CCM) to operate, reduce power interference (RFI/EMI);Shape structure meet the requirements of the industry standard, equipment is small volume, light weight, can meet the ordinary building bearing requirements;Optional input and output isolation transformer K valuesMaintenance manual switch, C grade lightning protection module.UPS can be used in parallel ,the maximum 4 pcs parallel to reach the expand demand.Key Feature·Module structure, UPS capacity can be changed based on loads·N+X redundancy·Efficiency of UPS is more than 96%, environmental protection·Friendly interface design of LCD·Microprocessor control, self-check, battery check by itself·Online static bypass, strong protection for overload and UPS fault·RS232 & SNMP for optional, provide remote control management·Intelligent temperature controlled fan, long life and low noise·MTBF is more than 200,000 hours,and MTTR is 20 minutesSpecificationModule ModelGM30Module Capacity30KVAInput/Output WayThree phase in three phase outModule Dimension(W*D*H)mm440*590*130Weight(kg) 32 kgInput PF≥0.99Input Total Harmonic Distortion THDI(%)≤3% Model3RWG90KM303RWG150KM303RWG180KM303RWG240KM303RWG270KM30Capacity 90KVA 150KVA 180KVA 240KVA 270KVA Type of power moduleGM30Input mode3 Phase 4 Wires+ GroundInput voltage(Vac)380V/220V±20%,400V/230V±20%,415V/240V±20%Input Frequency(HZ)50Hz±10%,60Hz±10%Input PF≥0.99Battery voltage(Vdc)±240Charge Time10hs (2hs backup battery capacity)Battery quantity(Pcs)32-48 can be adjustedUPS Power Factor1.0Output Voltage(Vac)380/220V,400/230V,415/240VOutput Frequency(HZ)50Hz±4%;Mains overrun or battery mode output is 50Hz±0.2%60Hz±4%;Mains overrun or battery mode output is 60Hz±0.2%Output voltage Stability±1%(Static);±2%(Load change from 0 ~ 100% ) Efficiency (AC mode @ full loads)≥94%Output voltage recovery time
