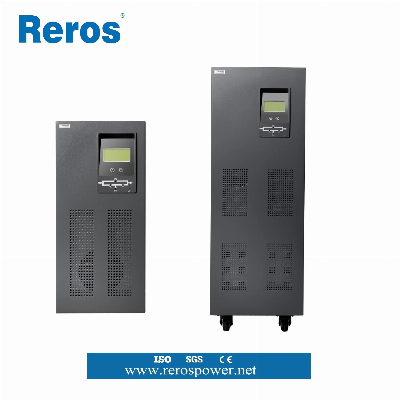

1-20kVA Sine Wave Single Phase UPS Low Frequency Online

B1kVA-20kVAProduct  introductionB1kVA-20kVA series is based on double conversion on-line intelligent UPS, is designed for industrial manufacture environment, is the real double conversion on-line high-performance power frequency sine wave UPS. Key components in redundancy design, adopt advanced industrial power device, superior performance of SPWM inverter and international advanced technology such as intelligent multi-mode battery management technology, and plenty of power management software, has been widely used in metallurgy, chemical industry, building material, glass, electronics, automobile and other fields.  Main feature1.IGBT inverter and output isolation transformer2.Online double conversion3.Wide input voltage range4.RS232 communication port5.SNMP +USB+dry contact(optional)6.High reliability and performance7.External battery pack (optional)Application1.Data center 2.Industry3.Commercial facility4.Telecom system5.Precision instrumentSpecificationModelB1KS/LB2KS/LB3KS/LB4KS/LB6KS/LB10KS/LB15KB20KCapacity1KVA2KVA3KVA4KVA6KVA10KVA15KVA20KVAInput featuresInput voltage(Vac)165~275Frequency(HZ)45~66 Automatically select synchronization range according to grid frequencyPhaseSingle phase three wiresBattery voltage(Vdc)489696/192192Battery type4*7Ah 12V/External 8*7Ah 12V/External 8/16*7Ah 12V/External 16*7Ah 12V/ExternalExternalOutput featuresPower factor0.8/0.9Voltage(V)220/230/240±1%Frequency(HZ)50/60±0.5%(Free oscillation)Transfer Time(ms)0WaveformSine Wave,THD3:1Parallel functionNoYes(optional)Backup timeStandard time is 10min/ Long backup time can be extended freelyCharge recovery time
