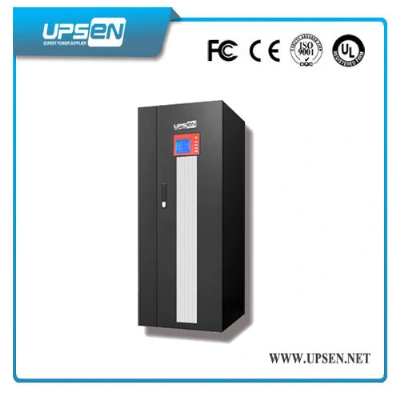

Pure Sine Wave Online Low Frequency Three Phase Industrial UPS

Product DescriptionPure Sine Wave Online Low Frequency three phase industrial UPSModel: Low Frequency Online UPS High Efficiency Strar Series HE33 10K-200K(3Ph in/3Ph out)     Key Features 1:Selectable battery inspection module  2:Advanced DSP digital control technology 3:Large-screen LCD + LED in Chinese and English display 4:Intelligent inspect and monitor UPS systems every second 5:Pure sine wave output, true on-line dual conversion design 6:Set the work mode on the display directly, UPS mode or ECO mode 7:High efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology 8:High definition touch screen LCD display and LED indicators, can show directly UPS status and operation, data records in table format, and events records  9:Excellent load feature Completely capable to load from 0-100% while no need to change to bypass, which make sure the output reliable 10:Three phase separately control, realizes the control of instantaneous over-loading balance, so as to reach 100% unbalanced load   Application Large-medium computer , industrial process,Sensitive Electronic Equipment,Medical Systems,Instrumentation,Emergency power system etc.   Technical Specification High Efficiency Strar Series HE33 10K-200KModelHE33 Series UPSCapacity (VA)10K15K20K30K40K60K80K100K120K160K200KNoninal output capacity8KW12KW16KW24KW32KW48KW64KW80KW96KW128KW160KWOperate typeDouble conversion online typeInputNominal voltage220V/380, 230/400, 240/415V Voltage Tolerance380/400/415V±25%Frequency50Hz/60Hz±5%Permitted Frequency Tolerance±2% (selectable from ±1% to 5% from the front panel)Soft start0-100% in 30" (selectable)Input power factor0.95(with input filter)Standard featuresBack Feed protection separable bypass line PhaseThree phase +N+GOutputVoltage220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load)Frequency50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode)Static stability±5% in 19msDistortionLinear load
