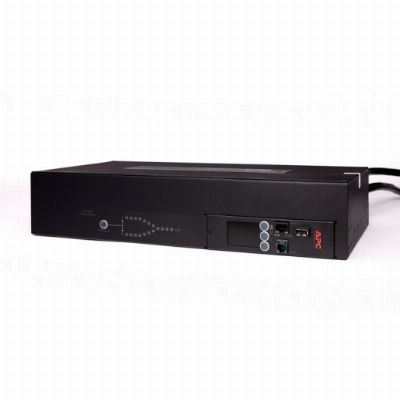

APC Ap4424 Rack Automatic Transfer Switch (230V, 32A)

Automatic transfer switches (ATS) are critical components of any emergency or standby power system. Transfer switches are reliable, rugged, versatile and compact assemblies for transferring essential loads and electrical distribution systems from one power source to another. Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 outAP4424 FeaturesKey FeaturesRack Height2UOutput Connections(2) IEC 60320 C19(16) IEC 60320 C13Nominal Output Voltage230VNominal Input Voltage230VInput ConnectionsIEC 60309 32 A 2P + ECord Length2.4metersTechnical SpecificationsOutputOverload ProtectionYes Maximum Total Current Draw32 InputInput frequency50/60 Hz Number of Power Cords2 Load Capacity7400VA Maximum Input Current32A Maximum Line Current32A PhysicalMaximum Height88MM, 8.8CM Maximum Width432MM, 43.2CM Maximum Depth236MM, 23.6CM Net Weight6.94KG Shipping weight9.43KG Shipping Height210MM, 21.0CM Shipping Width584MM, 58.4CM Shipping Depth356MM, 35.6CM ColorBlack EnvironmentalOperating Temperature-5 - 45 °C Operating Relative Humidity5 - 95 % Operating Elevation0 - 3048meters Storage Temperature-25 - 65 °C Storage Elevation0 - 15240meters ConformanceApprovalsEN 55022 class A, FCC part 15 class A/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
