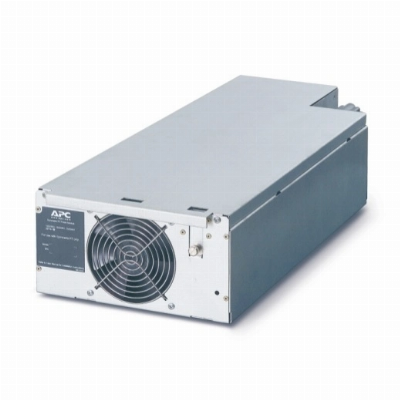

Symmetra is a single unit composed of modular components. This modular architecture provides the foundation of building and scaling near-continuous availability power systems with a flexible range of power capacity. The Symmetra Power Array combines with the complete line of APC datacenter protection software and accessories to provide the four most critical elements of total datacenter protection: redundancy, scalability, manageability and serviceability APC Symmetra LX 4kVA Power Module, 220/230/240VHigh density, double-conversion on-line power protection with scalable runtimeIncludes: Installation guideTechnical SpecificationsOutputMax Configurable Power (Watts)2.8kWatts / 4.0kVA Output Voltage NoteConfigurable for 220 : 230 or 240 nominal output voltage Output Frequency (sync to mains)50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronised, 60 Hz +/- 0.1 % For 60 Hz nominal Unsynchronised Other Output Voltages220, 240 Load Crest FactorUp to 5 : 1 TopologyDouble conversion online Waveform typeSine wave Maximum Output Current18 InputInput frequency45 - 65 Hz Auto-sensing Input voltage range for main operations155 - 276 1:1, 290 - 480 3:1V Other Input Voltages220, 240, 380, 415 Input Power Factor at Full Load0.98 PhysicalMaximum Height150MM, 15.0CM Maximum Width250MM, 25.0CM Maximum Depth565MM, 56.5CM Net Weight15.0KG Shipping weight18.18KG Shipping Height439MM, 43.9CM Shipping Width330MM, 33.0CM Shipping Depth565MM, 56.5CM Units per Pallet6.0 EnvironmentalOperating Temperature0 - 40 °COperating Relative Humidity0 - 95 %Operating Elevation0 - 3048metersStorage Temperature-15 - 45 °CStorage Elevation0 - 4572metersAudible noise at 1 meter from surface of unit62.0dBA/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
