Outdoor Telecom Cabinet Is an Ideal Solution for Physical Connections

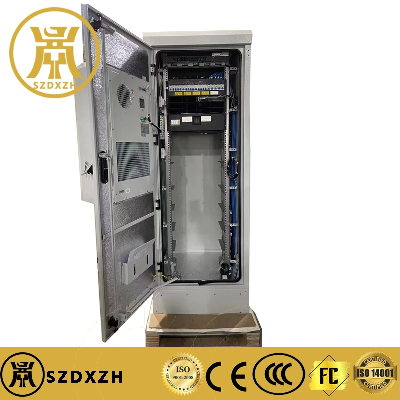

DX0914Outdoor Telecom CabinetDX0914 is an outdoor cabinet which can protect customer's equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both active telecom equipments and passive telecom equipments can be accomodated inside the cabinet.   Features:High protection grade: IP55Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlockCooling system is installed on cabinet door, convenient for maintenance, cleaning and replacementComprehensive protection: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc. Support remote management, improve security and minimize customer's operation costApplicationsThe outdoor cabinet is widely used in telecom operators' mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, communication base stations, outdoor air detection stations, solar control cabinets,etc.Technical Parameters  Configuration ItemTechnical ParameterCabinet ModelDX0914Protection LevelIP55External DimensionH1800mm×W650mm×D650mm ( can be customized)Internal Dimension19 inch 42UMaterialGalvanized steel, 1.2mm thickness, single wall.          Thickness of bearing parts: 2.0mmInsulation20mm PEFCoatingPolyester powder coatingColorRAL7035LockAnti-theft three-point locking systemHingeInner hingeInstallation OptionsFloor mountedCable RoutingCable in and out from the bottom of cabinetMaintenanceOne front door, front maintenance CoolingOptionalAC air conditionerDC air conditioner Heat exchangerDirectventilationCooling Capacity1500W1500W150W/K180CFMInput Voltage220VAC 50HZ48VDC48VDC48VDCCommunicationRS485RS485RS485/Power Distribution UnitVoltage200VAC~240VAC(optional)Input2P 63A×1, SPD 60KA (optional)Output1P 32A×2,1P 16A×4 (optional)SensorsDoor sensor , water sensor, temperature and humidity sensor, smoke sensorPower systerm Low-voltage photovoltaic 300A, rectification 300A, height 9U (three-phase input with ATS switch automatic switching of mains and oil engine)Others48VDC LED lamp for illuminationEnvironmentWorking Temperature-40ºC ~+55ºC (+Solar Radiation) Storage Temperature-40ºC~+70ºCWorking Humidity5%~95%(No condensation) Working Altitude0~4000 meters/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
