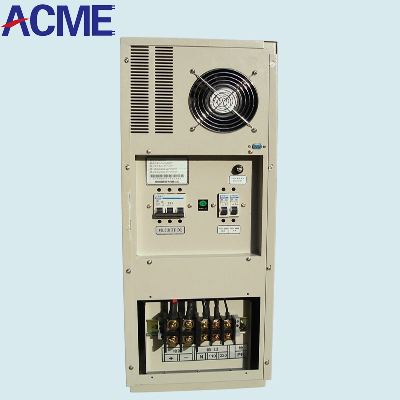

8kVA-40kVA Three Phase Online UPS

Product introduction Product introduction ACMEUS series UPS for all types of computer and accurate electronic equipment needs, with professional quality, excellent performance and ease of operation as the goal. It maintains the advantages of traditional online machine, improves the protection circuit, IGBT drive proprietary technology, high-frequency intelligent charging, digital management, etc., greatly improves the application level of the frequency online machine technology.This series of UPS can be used in personal computers, post and telecommunications, banking systems, railway transportation, electricity, scientific research and so on.Technical features 1. Online UPS, pure string wave output, The application of dual-transformation SPWM technology, durable;2. Liquid crystal display panel, through the LCD to switch, easy to check the working status of UPS;3. High-power high-quality intelligent charging, charging current up to 10A, to meet the long-term power supply system charging requirements;4. Special static switch design, power grid failure output zero interruption, bypass output time of 2ms;5. IGBT drive proprietary technology, output short-circuit protection to ensure that not damaged by short-circuit load; 6. Built-in isolation transformer, strong load capacity, load adaptability, safe and reliable;7. RS232 communication interface, providing remote monitoring function. Technical parametersModelACMEUS33-___KRating capacity8KVA-40KVAInputPhase/Wire3 PH 4W+GVoltage220, 380V±20%Frequency50/60Hz±5%Control wayIGBT PWM pulse width modulationOutputWaveformSine wave, THD 3%Voltage stability220, 380V±3%Frequency50Hz,60Hz±0.5%Temporary change100% load change, ±2%Overload capability120% rated current,automatically switch to bypass (BYPASS) after 5 seconds 150% rated current,automatically switches to bypass after 10 cycles(BYPASS)CF3:1Load PF0.8 LagPower failure conversion time (MS)0Static switching time (ms)0Batteries No.16/30BatteryTypeLead-acid maintenance-free batteryPower timeStandard 5 minutes, can be up to 8 hours (full load)Charge time90% charge in 7-10 hoursEfficiency(full load)>65%/>80%/>86%Noise50dc/55db/60dbProtectionOverload limit current output,Overload/short-circuit protection, burst voltage protection (220V UPS-470V, 110V UPS-240V) Off-alert suppression capacity up to FCCA levelLightThe mainpower is OK (green light) The converter is OK (green light)Bypass output (yellow light) Battery low Voltage (red light) Overload (red light) Fault (red light)AlarmThree segmentsEvery 4 seconds after the power outageThe battery will be exhausted, every second to tweet Continuous lying in the event of a fault or battery exhaustionComputer Interface9PinD Type connector(Option)Ambient temperature humidity0~40ºC Up to 95% without condensationSize(mm)450×980×550/580×1180×490/560×1200×720Weight(KG)128-510KGInput deviceTerminal row  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
