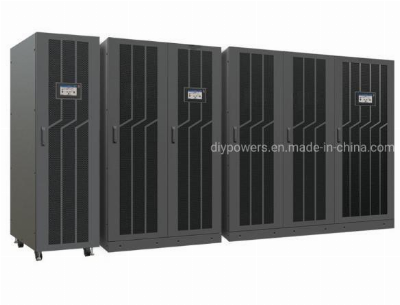

Lithium-Ion UPS 200kVA-1200kVA High Frequency Large Capacity Tower UPS

HPM3300E-T series UPS is developed as a high frequency large capacity tower UPS which can solve most of the power supply problems, such as blackout, over-voltage, voltage sudden drop, oscillating of decreasing extent, high voltage pulse, voltage fluctuation, surge, inrush current, harmonic distortion (THD), noise interference and frequency fluctuation. It has a strong load capacity and can be matched with full inductive load or capacitive load. The UPS can be used in various applications ranging from computer equipment, automatic equipment, large and medium-sized data centers, bank/security settlement centers, communication systems to industrial equipment. Lithium-ion battery pack to provide higher power density, smaller footprint, and longer cycle life. General Features  138-485 Vac wide input voltage range to minimize battery useHigh input power factor up to 0.99Three level topology design, efficiency is up to 96.5%Support parallel expanded operation: maximum is 8 unitsSmart sleeping mode for energy saving and prolong the life time of the systemPower saving with high input power factor up to 0.99 VRLA & Lithium battery supportableStrong load capacity,1.0 power factor for 100% unbalanced loadCan connect full inductive load or capacitive loadLBS function:2 independent UPS system can work in synchronization to enchances reliabilitySuperior MTTR (Meantime to repair) & Short shutdown time in maintenanceTouch-screen Super-large LCD displayTechnical SpecificationModelHPM3300E-200-THPM3300E-250-THPM3300E-300-THPM3300E-400-THPM3300E-500-THPM3300E-600-THPM3300E-800-THPM3300E-1000-THPM3300E-1200-TCapacity (VA)200k250k300k400k500k600k800k1000k1200kINPUTNominal voltage380/400/415Vac, (3Ph+N+PE)Operating voltage range138~305Vac for 40% load; 305~485Vac for 100% loadOperating frequency range40Hz~70HzPower factor≥0.99Harmonic distortion (THDi)≤3% (100% linear load)Bypass voltage rangeMax. voltage:220V: +25% (optional+10%, +15%, +20% ); 230V: +20% (optional +10%, +15% ); 240V: +15% (optional +10%)Min. voltage: -45% (optional-10%, -15%, -20%, -30%)Bypass frequency rangeFrequency protection range: ±10%Power Walk InSupportGenerator inputSupportOUTPUTRated voltage380/400/415Vac, (3Ph+N+PE)Power factor1Voltage regulation±1%OutputLine modeSynchronize with input, when the input frequency >±10%(±1%/±2%/±3%/±4%/±5% optional), output 50/60 (±0.1Hz)frequencyBat. mode(50/60±0.1%)HzCrest factor3:01Harmonic distortion (THDv)≤2% with linear load; ≤4% with nonlinear loadEfficiencyup to 96.5%BATTERYBattery voltageVRLA battery360Vdc~600Vdc (30~50pcs continuously adjustable, 30pcs default, 36~50pcs no powerderating; 32~35pcs output power factor 0.9; 30/31pcs output power factor 0.8)Lithium battery512VdcPower module charge current80A(Max.)100A(Max.)140A(Max.)180A(Max.)200A(Max.)280A(Max.)340A(Max.)400A (Max.)SYSTEM FEATURESTransfer timeUtility to Battery : 0ms; Utility to Bypass: 0msOverloadLine mode≤110%, 60min; ≤125%, 10min; ≤150%,1min; to bypass.>150% Shut down Immediately.Bypass mode30ºC: 135% overload for long term; 40ºC: 125% overload for long term; >1000% overload for 100 msOverheatLine Mode: Switch to Bypass; Backup Mode: Shut down UPS immediatelyLow battery voltageAlarm and Switch offSelf-diagnosticsUpon Power On and Software ControlBackfeed protectionSupportEPO (optional)Shut down UPS immediately (turn to bypass optional)BatteryAdvanced Battery ManagementNoise suppressionComplies with EN62040-3Audible & visual alarmsLine Failure, Battery Low, Overload, System FaultStatus LED & LCD displayLine Mode, Bypass Mode, Battery Low, Battery Fault, Overload & UPS FaultReading on the LCD displayInput, Output, Battery, Command, Setting, MaintenanceCommunication interfaceRS232, RS485, Parallel, LBS, BMS, Dry contact port, Relay card(optional), SNMP card(optional), Battery temperature sensor(optional)ENVIRONMENTALOperating temperature0ºC~40ºCStorage temperature-25ºC~55ºCHumidity range0~95% (non condensing)Altitude1500mNoise level
