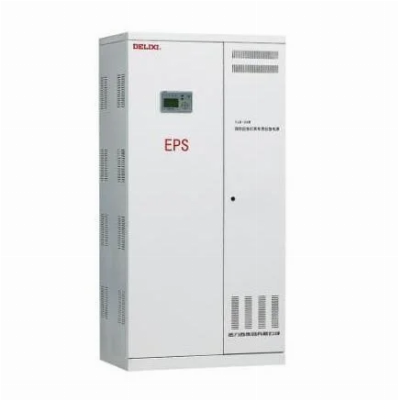

Delixi Yj-D Single-Phase Emergency Power Supply UPS

 The emergency power supply consists of inverters, transformers, chargers, battery packs, conversion relays, battery circuit breakers, mains input circuit breakers, output branch circuit breakers, and other main components. When mains power is normal, it directly outputs mains power; Simultaneously charge the battery through a charger; When the mains power is interrupted or below the set limit, the inverter starts working, and the DC power from the battery is converted into AC power through the inverter and transformer to supply emergency loads.Technical ParameterProduct ModelYJ-DAC outputRated power              KVA0.5~10Output accuracy           V220 ± 5% (Synchronize with mains power when normal)Emergency frequency  Hz50 ± 0.25Output voltage range                                V± 20%Output frequency                                     Hz50 ± 5%Emergency time                                      min≥90 (Standard type)Conversion time                                        s
