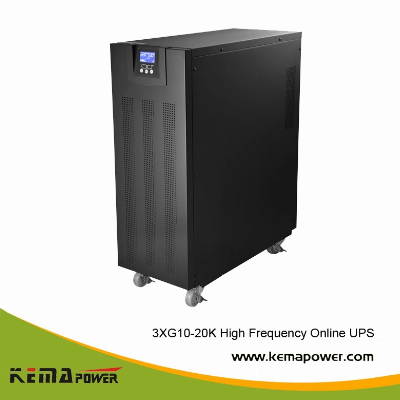

3xg Single Phase Output Double Conversion Technology Online UPS

3XG Single phase output double conversion technology online UPSKEY FEATURES*LCD High frequency3PH IN 1PH OUT sine wave online UPS 10K15K20KVA*DSP digital control double conversion technology, Zero transfer time*Single phase, output Power Factor 0.8/0.9, adjustable VAC and HZ by panel*Wide input voltage and frequency range, support Generator* Advanced Input PFC technology, 0.99* Self-testing, and battery management function* Automatic battery charging while UPS off mode*Lightning,surge,Short circuit and overload protection, Alarm or Silence settable*RS232 or USB communication with monitoring softwareSNMP, EPO, MBS ,N+X PRC OptionTechnical Specifications  ItA19:H51Model XG10KLXG10KXG15KLXG15KXG20KLXG20KCapacity VA / Watts 10KVA / 8KW 15KVA/12KW 20KVA/16KW InputNormal voltage 380VAC, 3PH+N+GTurn on Voltage rangePhase Voltage(120+-5~274+-5)VACFrequency range40~60Hz+-0.2(adjustable)Input power factor>0.99(220VAC,full R load)GeneratorSupport generator input(Generator rating≥2*UPS rating )line low loss/comebackPhase voltage (120±5)VAC/(140±5)VAC when Load≤50%Phase voltage (150±5)VAC/(165±5)VAC when 50%< Load≤80%Phase voltage (160±5)VAC/(180±5)VAC when 80%< Load≤90%Phase voltage(175±5)VAC/(190±5)VAC when Load>90%OutputVoltage range Single phase ,200VAC/208VAC/220VAC/230VAC/240VAC, need confirm before order(Could be adjusted by software,10% derating for 208VAC/200VAC)Frequency range 40~60Hz+-0.2(adjustable)Wave formPure Sine WaveTransfer time 0 ms, Between Line mode and Bat mode Transfer time: 4ms (typical 2.5ms), line Mode and bypass mode Voltage distortion≤6%,Full RCD load Voltage distortion≤2%,Full R  loadOverload capacity≤105%+-5% warning only, 105%+-5%
