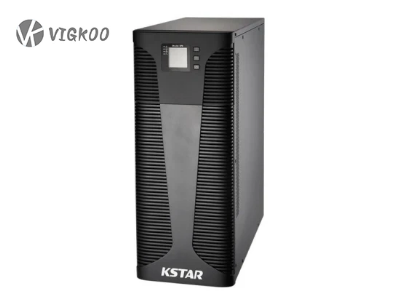

UPS System for Large Internet Computer, Medical & Health, Industrial Equipment

UCR60-100 series UPS is a Rack/Tower convertible UPS solutions which integrates true double-conversion design, DSP technology to provide clean high-level quality power as well as better voltage conditions to different application. What's more, with N+X parallel redundancy, it can achieve higher availability and MTBF (mean time between failure) to fully protect mission-critical devices.  General FeaturesTrue double-conversionReal-time digital signal processor (DSP) controlN+X parallel redundancySelectable quantity of battery for each group:for long run unitAdjustable charging current via LCD3-stage charging design optimizes battery performanceECO mode operation for energy savingSelf-diagnosis at startupEmergency power off function(EPO)Maintenance bypass is convenient for maintenanceGenerator compatibleCommunications:RS-232,USB,SNMP card(Optional), Relay card (Optional)Cold start Technical SpecificationMODELUCR60LUCR100LCapacity (VA/Watts)6K / 5.4K10K / 9KINPUT Nominal Voltage380/400/415Vac(3Ph+N+PE) or 220/230/240Vac(L+N+PE) Operating Voltage Range208~478Vac or 120VAC-276VacOperating Frequency Range50Hz:45~55Hz,60Hz:54~66HzPower Factor≥0.99Bypass Voltage RangeMax.voltage: 220V:+25%(Optional +10%,+15%,+20% )         230V:+20%(Optional +10%,+15%)240V:+15%(Optional +10% )   Min. voltage: -45% (Optional -20%,-30%)ECO RangeSame as bypassHarmonicDistortion (THDi)≤5%(100% non-linear load) OUTPUT  Output Voltage220/230/240VacPower Factor0.9Voltage Regulation±1%FrequencyLine Mode±1%/±2%/±4%/±5%/±10% of the rated frequency(Optional)Bat.Mode(50/60±0.1)HzCrest Factor3:1Harmonic Distortion (THD)≤2% with linear load≤5% with non-linear load Waveform Pure SinewaveTransfer TimeUtility to Battery : 0ms; Utility to Bypass: 0msEFFICIENCYEfficiencyUp to 94%BATTERYBattery VoltageSelectable Voltage: ±96/108/120VdcTypical Recharge Time6-8 hours (To 90% capacity)Charging Current Maximum current 10APROTECTIONOverloadLine ModeLoad≤125%: last 5min;≤150%: last 1min;>150% 200ms turn to bypass modeBypass Mode40A(Input breaker)63A(Input breaker)Short CircuitHold Whole SystemOverheatLine Mode: Switch to Bypass; Backup Mode: Shut down UPS immediatelyBattery LowAlarm and Switch offINDICATORSAudible &Visual AlarmsLine Failure, Battery Low, Overload, System FaultStatus LED &LCD DisplayLine Mode, Backup Mode, Eco Mode, Bypass Mode, Battery Low, Battery Bad, Overload & UPS FaultParameters OnThe LCD PanelInput/Output Voltage, Input/Output Frequency, Load Level, Battery Level, Inner Temperature & Remaining Battery Backup TimeMANAGEMENTCommunication InterfaceRS-232,USB,Parallel card, SNMP card(Optional), Relay card (Optional)ENVIRONMENTOperating Temperature0ºC~40ºCStorage Temperature-25ºC~55ºCHumidity Range0~95% (Non-condensing)Altitude< 1500mNoise Level
