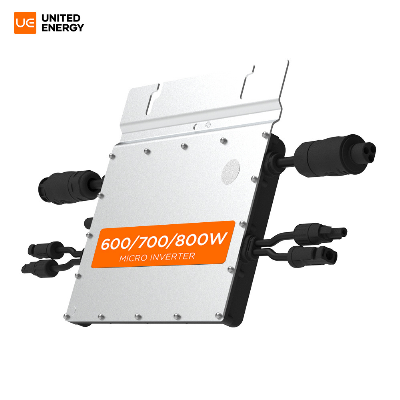

Solar Micro Inverter 600watt 800watt 1000watt Price Zonnepanelen Sets Micro Inverters

Product Description SpecificationsModelHM-600HM-700HM-800Input Data (DC) Commonly used module power (W) 240 to 405+ 280 to 470+ 320 to 540+ Maximum input voltage (V) 60 MPPT voltage range (V) 16-60 Start-up voltage (V) 22 Maximum input current (A) 2 × 11.5 2 × 11.5 2 × 12.5 Maximum input short circuit current (A) 2 × 15 Number of MPPTs 2 Number of inputs per MPPT1Output Data (AC) Rated output power (VA) 600 700 800 Rated output current (A) 2.61 3.04 3.48 Nominal output voltage/range (V) 230/180-275 Nominal frequency/range (Hz) 50/45-55 or 60/55-65 Power factor (adjustable) > 0.99 default 0.8 leading…0.8 lagging Total harmonic distortion < 3% Maximum units per branch 8 7 6 Efficiency CEC peak efficiency 96.70% CEC weighted efficiency 96.50% Nominal MPPT efficiency 99.80% Nighttime power consumption(mW) < 50 Mechanical Data Ambient temperature range (°C) -40 to +65 Dimensions (W × H × D mm) 250 × 170 × 28 Weight (kg) 3.0 Enclosure rating Outdoor IP67 (NEMA 6) Cooling Natural convection (no fans) Features Communication 2.4 GHz Proprietary RF (Nordic) Type of isolation Galvanically Isolated HF Transformer Monitoring S-Miles Cloud Compliance VDE-AR-N 4105: 2018, EN 50549-1: 2019, VFR 2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3 Detailed Photos Professional Packing UE Project Case Company Profile As a world-class solar products manufacturer, United Energy specializes in research, development, production, and sales of solar PV products.United Energy founded in 2009, National high-tech enterprise, specializing in R&D, which manufactures solar cells, modules, and PV power generation systems with global production capacity of 6.5GW, aiming at becoming "The expert of solar power generation". Serves worldwide customers with high-quality products and professional services. So far more than 10 GW United Energy's products have been widely applied in over 150 countries.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
