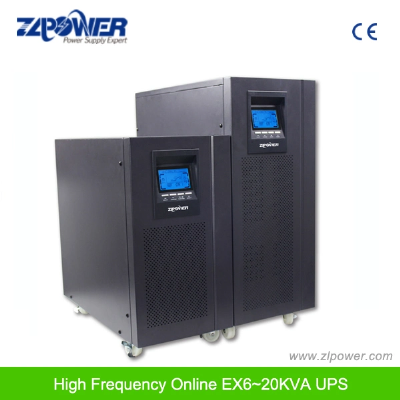

6kVA 10kVA 15kVA 20kVA High Frequency Online UPS Shenzhen Factory Price

Model: Industry UPS, large UPS for data center IP/OP: 220/230/240VAC 50/60Hz IP/OP: 380/220VAC 50/60Hz 1. Wide input voltage range 2. Highest reliability for power sharing and redundancy 3. 0 transfer time 4. CE certificate UPS KEY FEATURES True online double conversion technology UPS Wide input voltage range Zero transfer time Protection against all types of power problems No add-on CNTL unit required for parallel connection Low initial investment and flexible for future expansion UPS Highest reliability and maximum performance for power sharing and redundancy UPS Equipped with maintenance bypass switch Smart RS232 and intelligent slot interface Sealed lead acid, maintenance free battery for UPS UPS APPLICATION Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc. Model(T series ups)DX6KDX6KLDX10KDX10KLDX3110KLDX3115KLDX3120KLCapacity6KVA/4800W10KVA/8000W15KVA/12000W20KVA/16000WInputNominal Voltage220V380VVoltageRange176~276VAC304~478VACFrequency46~54Hz/56~64HzOutputVoltage220/230/240(1±1%)VACFrequency50/60Hz(adjustable)50Hz AC Mode--Follow AC Mode( AC Range 46~54Hz) Battery Mode--50Hz(1±0.2%) 60Hz AC Mode--Follow AC Mode( AC Range56~64Hz) Battery Mode--60Hz(1±0.2%)Current Crest Ratio3 to 1Output Wave FormSine WaveBack-up TimeFull Load≥7′Depends on the capacity of the external batteries bank≥5′Depends on the capacity of the external batteries bankHalf Load≥20′≥13′BatteryNominal Voltage192VDCTransfer Time0msOverload Capacity105%~130% 10min, over 150%1minCommunicationRS-232+Intelligent SlotOperating EnvironmentTemperature0c~40cHumidity15%~90%Dimensions(W×D×H)mm260×570×717Net Weight(Kg)90359338395555RT series high frequency online ups 1kva 2kva 3kva 6kva 10kvaOutdoor ups 1kva 2kva 3kva 6kva 10kvaAny more requirements ,pls feel free to send me messages  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
