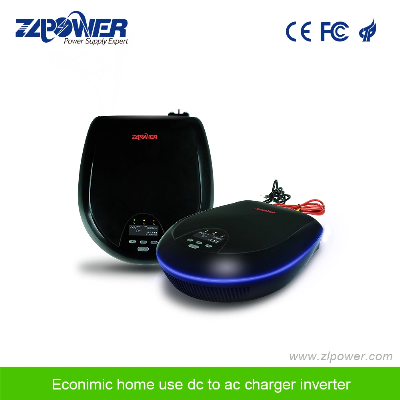

Modified Sine Wave Wall Mounted Homage Inverter UPS

Modified Sine Wave wall mounted Homage Inverter UPS Features♦Automatic line-to-battery switchover.♦Configurable Input voltage ranges via LCD setting.♦High efficient DC-to-AC conversion, minimizing energy loss.♦Rack design & wall-mounted design for flexible installation.♦Built-in enhanced charger.♦Intelligent 3-stage charger control for efficient charging and preventing overcharge.♦Auto restart while AC recovery.♦User-friendly LCD+LED indications.♦Multiple protection: low battery alarm, low battery shutdown,over charger protection, overload  protection,over temperature protection, short circuit protection. Specifications                                                              Model                              Parameters        HDX 1000-12HDX 1200-12HDX 2000-24*1                CAPACITYVA/W1000VA/700W1200VA/900W2000VA/1500WBATTERYVDC12VDC24VDCAC InputNominal input Voltage220/230/240VACSelectable Voltage Range170-280VAC (Narrow Range);90-280VAC (Wide Range)AC OutputOutput Voltage WaveformModified sine waveVoltage230VACVoltage Regulation                (Batt.Mode)10% / -18%Nominal OutputFrequency (Hz)±1HZBattery & ChargerCharger Current20Amp15AmpOvercharge Protection16V32VTransfer TimeTypical15ms Typical, 40ms Max.EfficiencyAC to AC>95%DC to AC>80%Display IndicatorAC ModeDisplay output power, output voltageBattery ModeThe mark          will flicker every 1second.Battery Charging ModeDisplay the Battery capacityFaultDisplay faultAudible AlarmLow Battery at Battery ModeSounding every 2 secondsOverloadSounding every 0.5 secondFaultContinuously soundingEnvironmentOperating TemperatureRange0- 50°C, 5%-90 % relative humidity (non-condensing)Storage Environment -15°C to 55°C, 5% to 95% humidity (non-condensing)Noise LevelLess than 50dBPhysicalDimension(L*W*H)373*121*305mmProtectionFull ProtectionDischarge, overcharge, overload, over temperature protection.Net Weight(kg)1.98kg2.29kg2.17kgProduct specifications are subject to change without further noticeAbout ZLPOWERFounded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.  As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.  Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.  Product:  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
