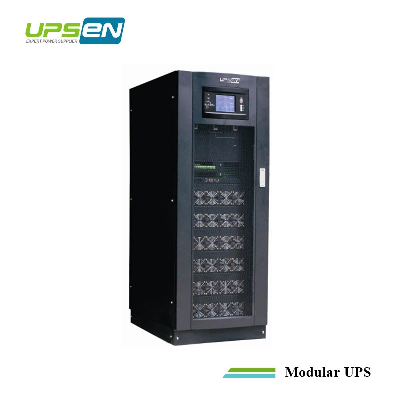

Low Noise Double DSP Controller 10K-200kVA Modular Online UPS

Modular Online UPS Power Melody Star Series 10K-200KVA (3ph in/3ph out)Power Range: 10K-200KVA (3ph in/3ph out) UPS with Modular design and hot swappable.Intelligent module and system protection design.Large touch screen LCD with plenty of information.Incredible low noise system design.Key Features:UPS with Modular design and hot swappable.IGBT modules rather than discrete components are applied in the power module.Intelligent module and system protection design.Double DSP controller for individual power module.Strong load adaptability for linear and nonlinear load.Large touch screen LCD with plenty of information.Incredible low noise system design.Digital paralleling technology, very low circle current between modules.Digital control for the whole parts including rectifier, inverter, charger and discharger.Independent charger for batteries, intelligent battery management system.Totally front access, top and bottom cable connection.Inbuilt power distribution for input and output connection. Technical SpecificationCapacity10-200KVAMain InputInput voltage380V/400V/415V(line to line)Input frequency50/60HzPower factor> 0.99Input cuurent THD(Total Harmonic Distortion)< 3%Input voltage window-40%~+25%Frequency window40-70HZBatteryBattery voltage± 240VDCCharger power20%*PowerCharger voltage precision1%BypassBypass voltage380V/400V/415V, three phaseBypass voltage window-20%-+15%, full load, settableBypass overload capabiltiy150%, long time operation180%, shut down after 10 minutes> 180%, shut down after 200msOutputOutput voltage380V/400V/415V, three phaseVoltage precision± 0.5% (balance load), ± 1% (unbalance load)Voltage THD(Total Harmonic Distortion)THD< 1%(linear load), THD< 3%(nonlinear load)Power factor0.8Phase tolerance120° ± 0.5° (balance and unbalance load)Crest factor3: 1Overload capabiltiy110%, transfer to bypass after 1hour125%, transfer to bypass after 10 minutes150%, transfer to bypass after 1 minute> 150%, transfer to bypass after 200msSystemSystem efficiencyNormal mode: 95%ECO mode: 99%Battery mode efficiency95%DisplayLCD+LED, Touch screen and keyboardIP classIP20Interface (Communication Ports )RS232, RS485, Dry contacts, SNMP card, EPO, Generator interfaceInstallation/ConnectionTop or bottom cable connectionOperation temperature0-40CStorage temperature-25~70CRelative humidity0-95% (non-comdensing)Noise(dB)< 55dBWeight(KG)6-module cabinet150KG10-module cabinet180KGModule10KVA: 20KG15KVA: 21KG20KVA: 22KGDimension(W*D*H)(mm)6-module cabinet600*900*160010-module cabinet600*900*2000Module400*600*133 (10KVA/15KVA/20KVA)*Specification are subject to change without prior noticeEach individual module is configured with independent controller, avoid single point failure risk.    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
