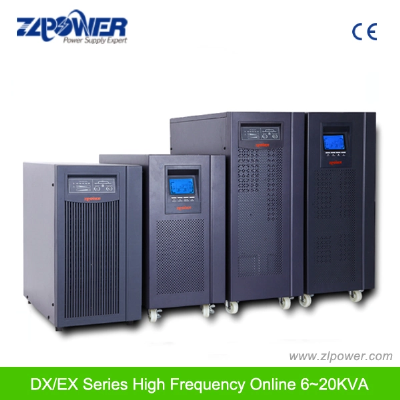

High Frequency Online UPS 6000va/4800W Shenzhen

On line UPS 6kVA4800W The Online DX Series is an uninterruptible power supply incorporating double-conversion technology. It provides perfect protection specifically for computer equipment, communication systems to computerized instrument- S. Its true online double-conversion design eliminates all mains power distur- Bances. A rectifier converts the alternating current from the utility power to direct current. This direct current charges the batteries and powers the inverter. On the basis of this DC voltage, the inverter generates a pure sinusoidal AC voltage, which is constantly powering the loads. Computers and Peripherals are thus powered entirely by the UPS. In the event of power failure, the maintenance-free batteries power the inverter. This manual is applicable to the following models: DX6K: Standard model with built-in batteries. DX6KL: Long backup time model, it is able to connect with the external battery bank. DX10K: Standard model with built-in batteries. DX10KL: Long backup time model, it is able to connect with the external battery bank. DX3110KL: Three-phase input and single-phase output, long backup time models, it is able to connect with the external battery bank. DX3115KL: Three-phase input and single-phase output, long backup time models, it is able to connect with the external battery bank. DX3120KL: Three-phase input and single-phase output, long backup time models, it is able to connect with the external battery bank. Above all models contain standard rev and professional rev, User can select corresponding model by its requirement, compared with standard rev, professional rev (Model number with"P") has EPO switch and bypass maintenance switch built-in, about the function of EPO and bypass maintenance switch please refer to 2.8 and 2.9. ModelDX6KDX6KLDX10KDX10KLDX3110KLDX3115KLDX3120KLDimension(W× D× H)248× 500× 616240× 500× 460248× 500× 616240× 500× 460248× 500× 616Net Weight(kg)571867.520273535PowerApparent Power/Active Power6KVA/ 4.8KW6KVA/ 4.8KW10KVA /8KW10KVA /8KW10KVA /8KW15KVA /12KW20KVA /16KWMainsVoltageRange120VAC--275VAC210~475VACCurrent*33Amax37Amax55Amax59Amax86Amax112AmaxFrequency Range46Hz--54HzPower Factor0.990.95OutputVoltage220VAC× (1± 1%)Current27A45A68A91AFrequency46Hz--54Hz(Line Mode, Same as input frequency), 50Hz× (1± 0.1%)(Battery Mode)Power Factor0.8Overload Capability105%--125%, 1 minutes minimum, then transfer to bypass and alarm, Bypass over load > 30 minutes then turn off output.125%--135%, 30 seconds minimum, then transfer to bypass and alarm, Bypass over load > 1 minutes then turn off output;> 135%, 0.5 seconds minimum, then transfer to bypass and alarm.Crest Factor3: 1THDTHD< 2% ( Linear Load)Battery (High ambient temperature shortens the battery' s lifetimes)Backup Time4minutes (Full Load)Depend on the capacity of external battery3minutes (Full Load)Depend on the capacity of external batteryRecover Time< 7 Hours Comeback to 90%Depend on the capacity of external battery< 7 Hours Comeback to 90%Depend on the capacity of external battery          * The maximum input current is got at input 187V, full load and full charge current.     ModelDX6KDX6KLDX10KDX10KLDX3110KLDX3115KLDX3120KLEMC ESDIEC61000-4-2 Level 4RSIEC61000-4-3 Level 3EFTIEC61000-4-4 Level 4SurgeIEC61000-4-5 Level 4Operating Temperature0º C--40º CStorage Temperature-25º C--55º CHumidity20%--90%Altitude< 1000mHigh altitude area load=rated power × derating coefficient (corresponding to altitude) Altitude(m)100015002000250030003500400045005000Derating coefficient100%95%91%86%82%78%74%70%67%Any  more information about us,pls feel  free  to contact Bella      /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
